FRB 20200814B

One-off burst

Event ID
116766199
Arrival, 400 MHz
2020-08-14 21:57:04.639 UTC
Right ascension
172.823°
Declination
57.995°

Loading

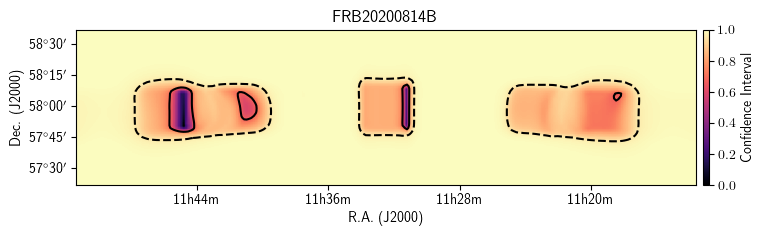

Localization

Loading

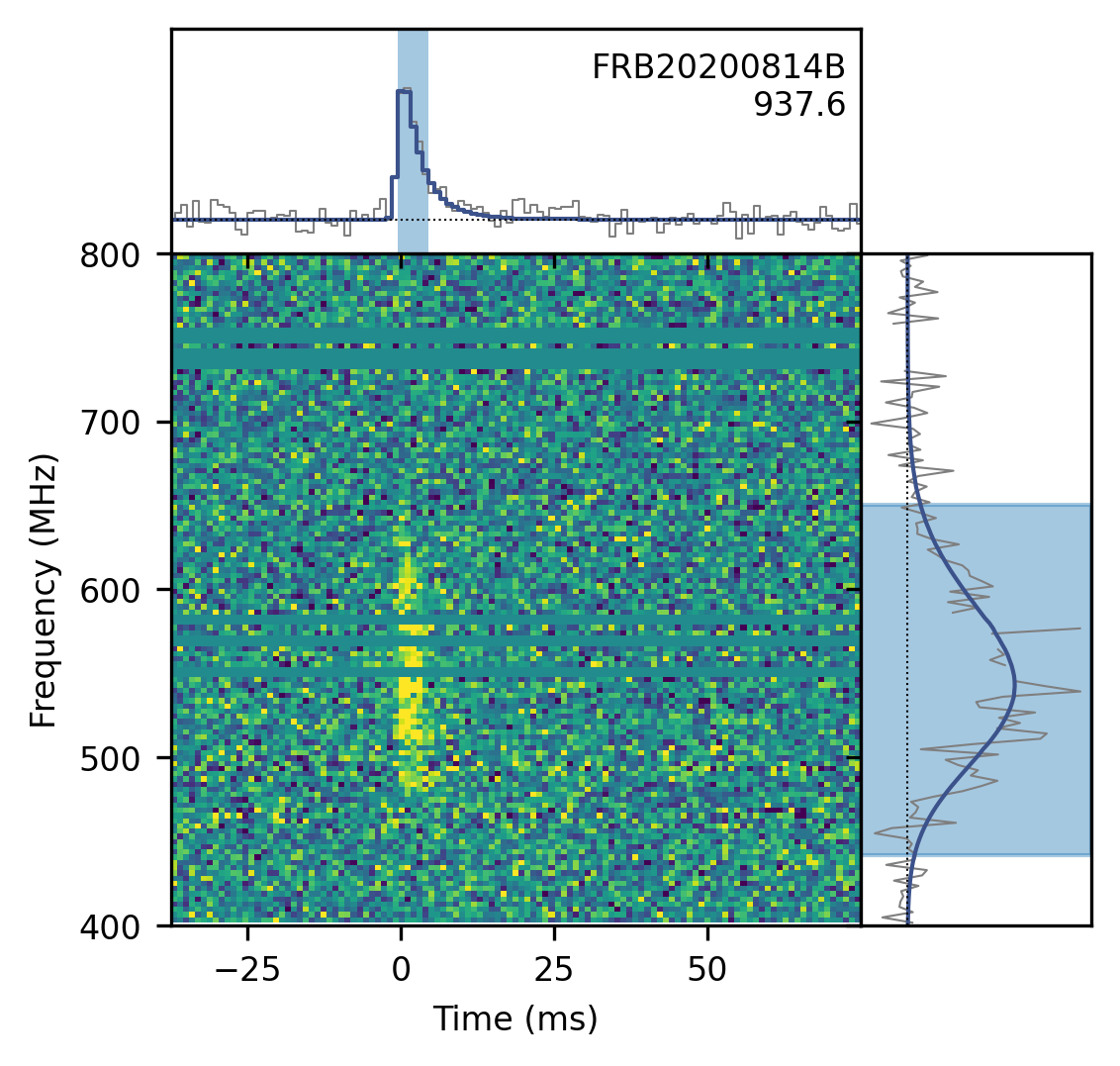

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
172.823± 0.028degrees
dec
57.995± 0.180degrees
gl
141.92degrees
gb
56.08degrees

Detection and dispersion

bonsai_snr
15.2
snr_fitb
28.4
bonsai_dm
936.5pc cm⁻³
dm_fitb
937.6062± 0.03057pc cm⁻³
dm_exc_ne2001
904.2pc cm⁻³
dm_exc_ymw16
913.8pc cm⁻³

Arrival time

mjd_400
59075.91463702737± 4.20 × 10⁻⁹MJD
mjd_inf
59075.91435587245± 1.01 × 10⁻⁸MJD

Burst shape

bc_width
0.00492s
width_fitb
0.000354± 0.0000744s
scat_time
0.010699± 0.0008608s

Flux and spectrum

flux
0.71± 0.22Jy
fluence
4.53± 0.94Jy ms
peak_freq
536.0MHz
low_freq
441.7MHz
high_freq
650.5MHz
sp_idx
35.90± 3.63
sp_run
-61.42± 5.70

Exposure and fluence thresholds

exp_up
153.12± 69.32hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.9Jy ms
low_ft_95
—
up_ft_95
6.5Jy ms

Fit quality

chi_sq
2157035.850
dof
2157833
flag_frac
0.187
