FRB 20200814D

One-off burst

Event ID
116759419
Arrival, 400 MHz
2020-08-14 17:58:59.039 UTC
Right ascension
113.092°
Declination
70.795°

Loading

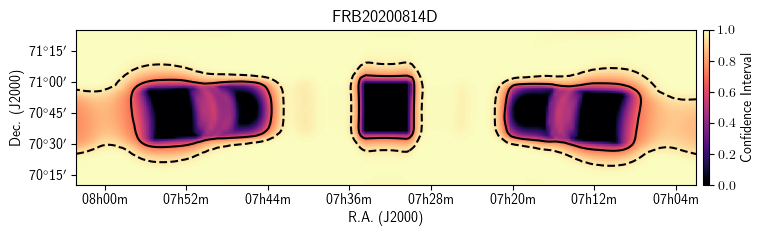

Localization

Loading

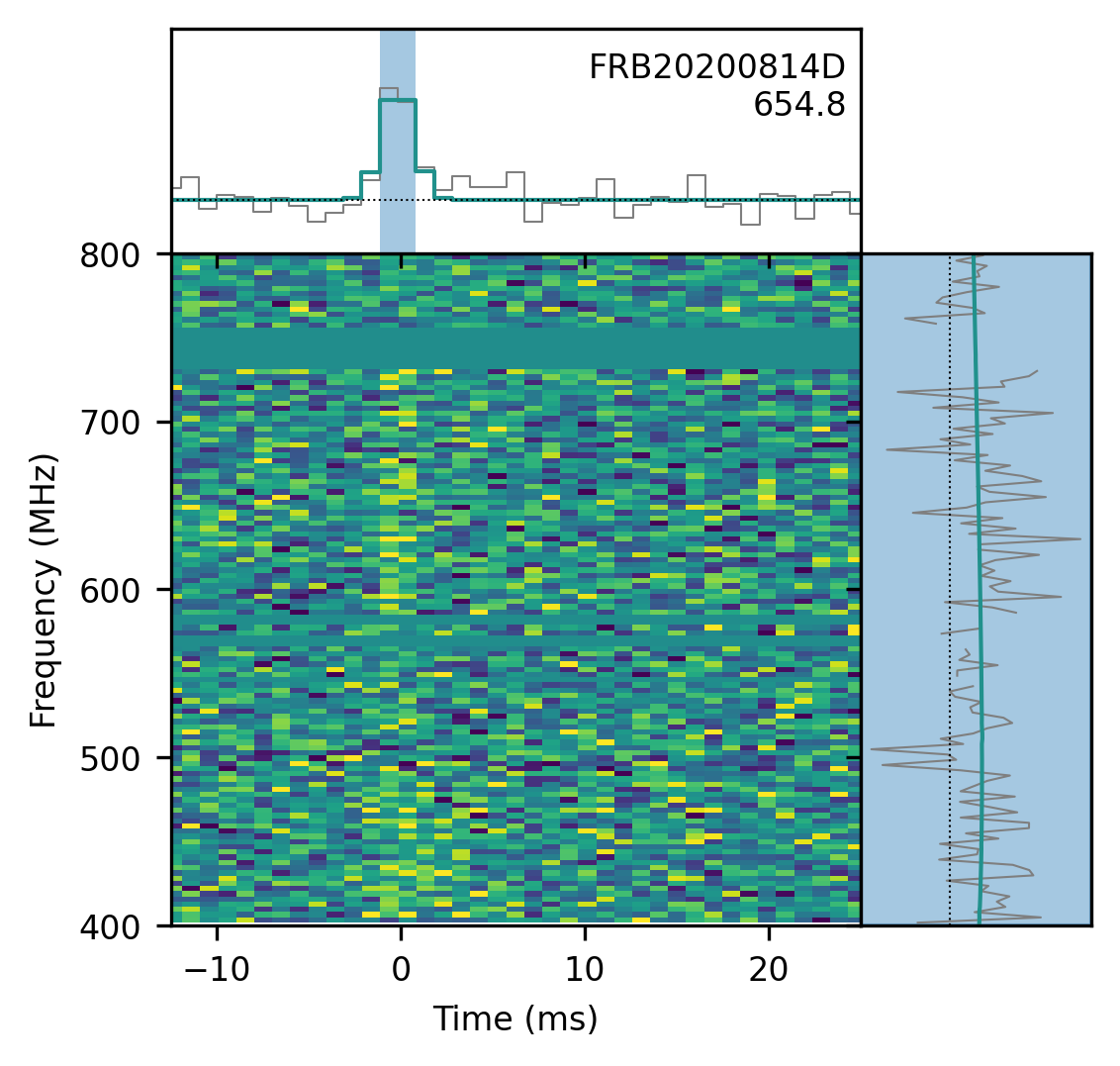

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
113.092± 0.225degrees
dec
70.795± 0.257degrees
gl
144.62degrees
gb
28.86degrees

Detection and dispersion

bonsai_snr
8.9
snr_fitb
10.2
bonsai_dm
655.1pc cm⁻³
dm_fitb
654.8164± 0.01733pc cm⁻³
dm_exc_ne2001
600.1pc cm⁻³
dm_exc_ymw16
603.0pc cm⁻³

Arrival time

mjd_400
59075.7492944294± 2.97 × 10⁻⁹MJD
mjd_inf
59075.74909807314± 5.99 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000725± 0.0000869s
scat_time
0.000000s

Flux and spectrum

flux
0.57± 0.32Jy
fluence
0.90± 0.47Jy ms
peak_freq
421.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.09± 2.03
sp_run
-0.91± 2.69

Exposure and fluence thresholds

exp_up
225.04± 131.37hour
exp_low
235.60± 49.86hour
low_ft_68
13.7Jy ms
up_ft_68
1.4Jy ms
low_ft_95
27.4Jy ms
up_ft_95
2.7Jy ms

Fit quality

chi_sq
2158707.568
dof
2158806
flag_frac
0.187
