CHIME/FRBPublic data

FRB 20200814C

One-off burst

Event ID
116759450
Arrival, 400 MHz
2020-08-14 18:12:15.705 UTC
Right ascension
117.348°
Declination
54.027°

Loading

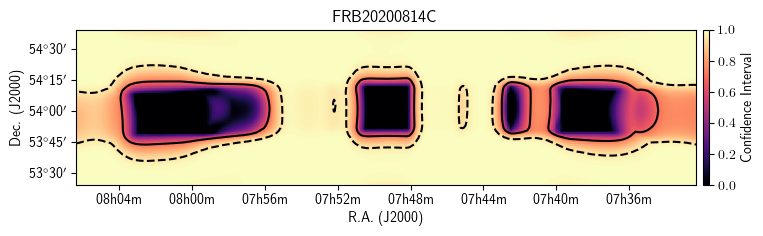

Localization

Loading

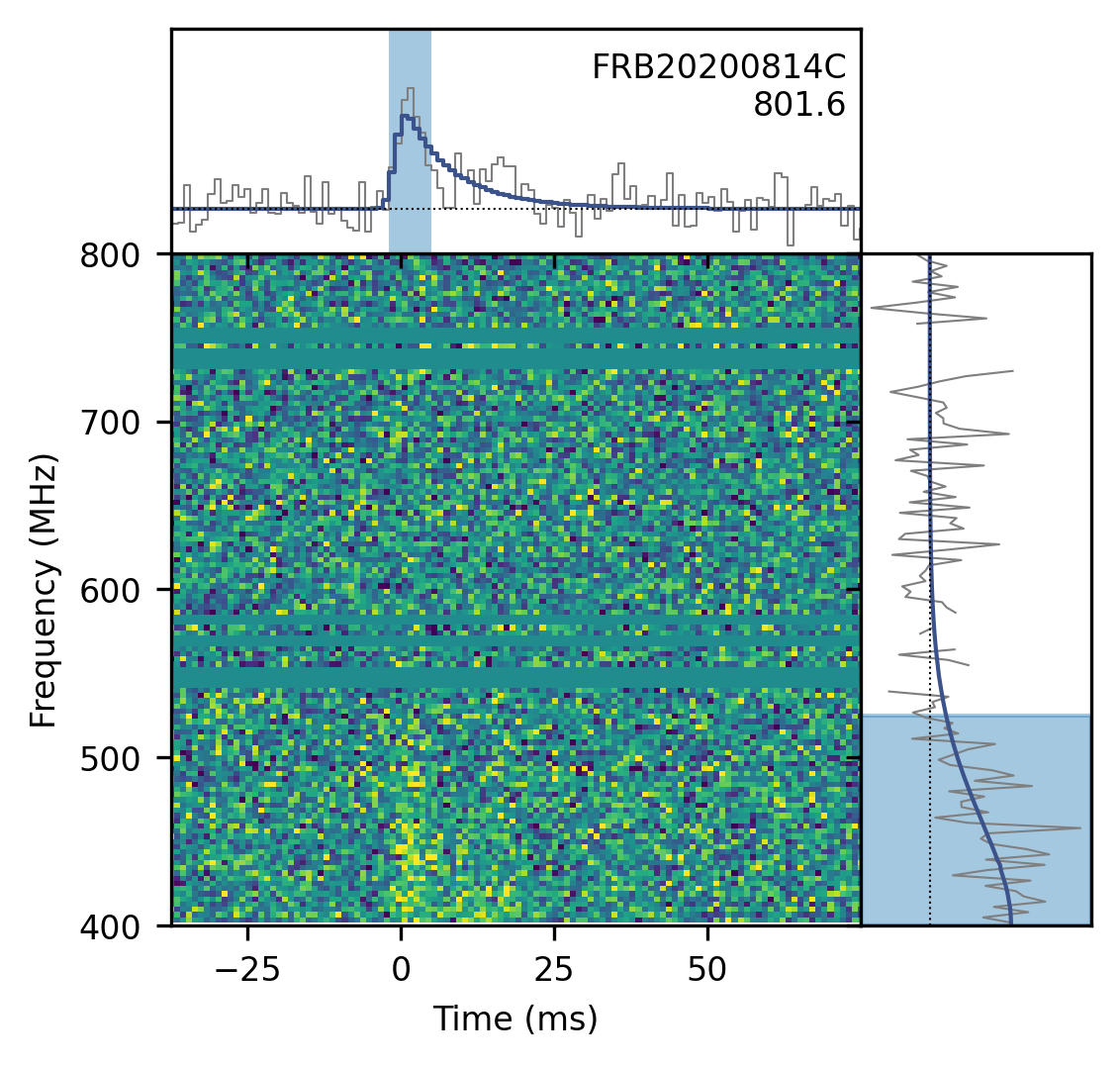

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
117.348± 0.235degrees
dec
54.027± 0.235degrees
gl
163.97degrees
gb
29.99degrees

Detection and dispersion

bonsai_snr
9.8
snr_fitb
14.7
bonsai_dm
800.7pc cm⁻³
dm_fitb
801.5858± 0.09223pc cm⁻³
dm_exc_ne2001
746.2pc cm⁻³
dm_exc_ymw16
748.2pc cm⁻³

Arrival time

mjd_400
59075.7585151029± 5.55 × 10⁻⁹MJD
mjd_inf
59075.75827473568± 2.82 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.000779± 0.0002491s
scat_time
0.012235± 0.0020233s

Flux and spectrum

flux
0.23± 0.12Jy
fluence
1.28± 0.40Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
525.1MHz
sp_idx
-3.18± 3.16
sp_run
-19.50± 13.32

Exposure and fluence thresholds

exp_up
124.73± 74.23hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
2178361.146
dof
2178569
flag_frac
0.179
