CHIME/FRBPublic data

FRB 20200822A

One-off burst

Event ID
119671143
Arrival, 400 MHz
2020-08-22 14:11:12.479 UTC
Right ascension
61.864°
Declination
86.288°

Loading

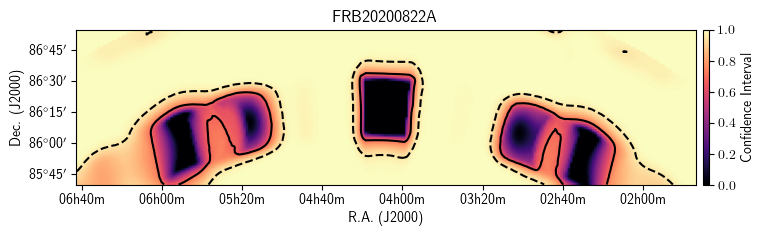

Localization

Loading

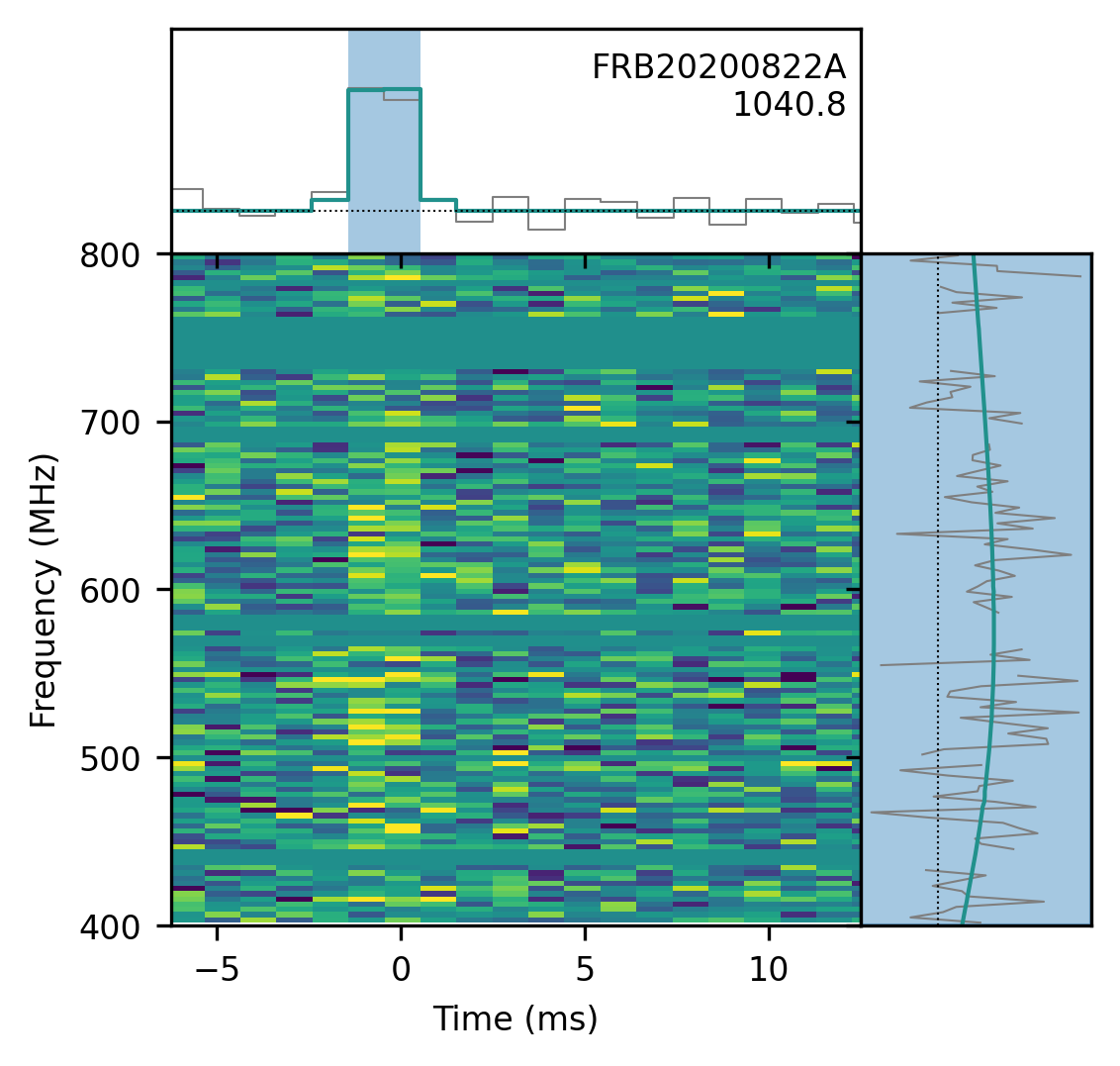

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
61.864± 0.224degrees
dec
86.288± 0.278degrees
gl
126.01degrees
gb
24.66degrees

Detection and dispersion

bonsai_snr
11.8
snr_fitb
15.9
bonsai_dm
1040.1pc cm⁻³
dm_fitb
1040.8195± 0.00196pc cm⁻³
dm_exc_ne2001
980.2pc cm⁻³
dm_exc_ymw16
980.0pc cm⁻³

Arrival time

mjd_400
59083.59111665213± 2.84 × 10⁻¹⁰MJD
mjd_inf
59083.590804547195± 6.51 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000267± 0.0000048s
scat_time
0.000000s

Flux and spectrum

flux
0.81± 0.34Jy
fluence
1.99± 0.53Jy ms
peak_freq
551.6MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.32± 1.63
sp_run
-3.62± 2.08

Exposure and fluence thresholds

exp_up
1164.74± 542.30hour
exp_low
1053.45± 526.78hour
low_ft_68
2.9Jy ms
up_ft_68
1.9Jy ms
low_ft_95
5.0Jy ms
up_ft_95
3.2Jy ms

Fit quality

chi_sq
1894821.966
dof
1895070
flag_frac
0.286
