FRB 20200823B

One-off burst

Event ID
120738947
Arrival, 400 MHz
2020-08-23 13:56:34.761 UTC
Right ascension
61.661°
Declination
28.669°

Loading

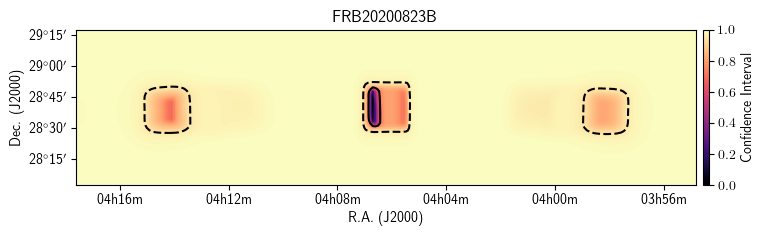

Localization

Loading

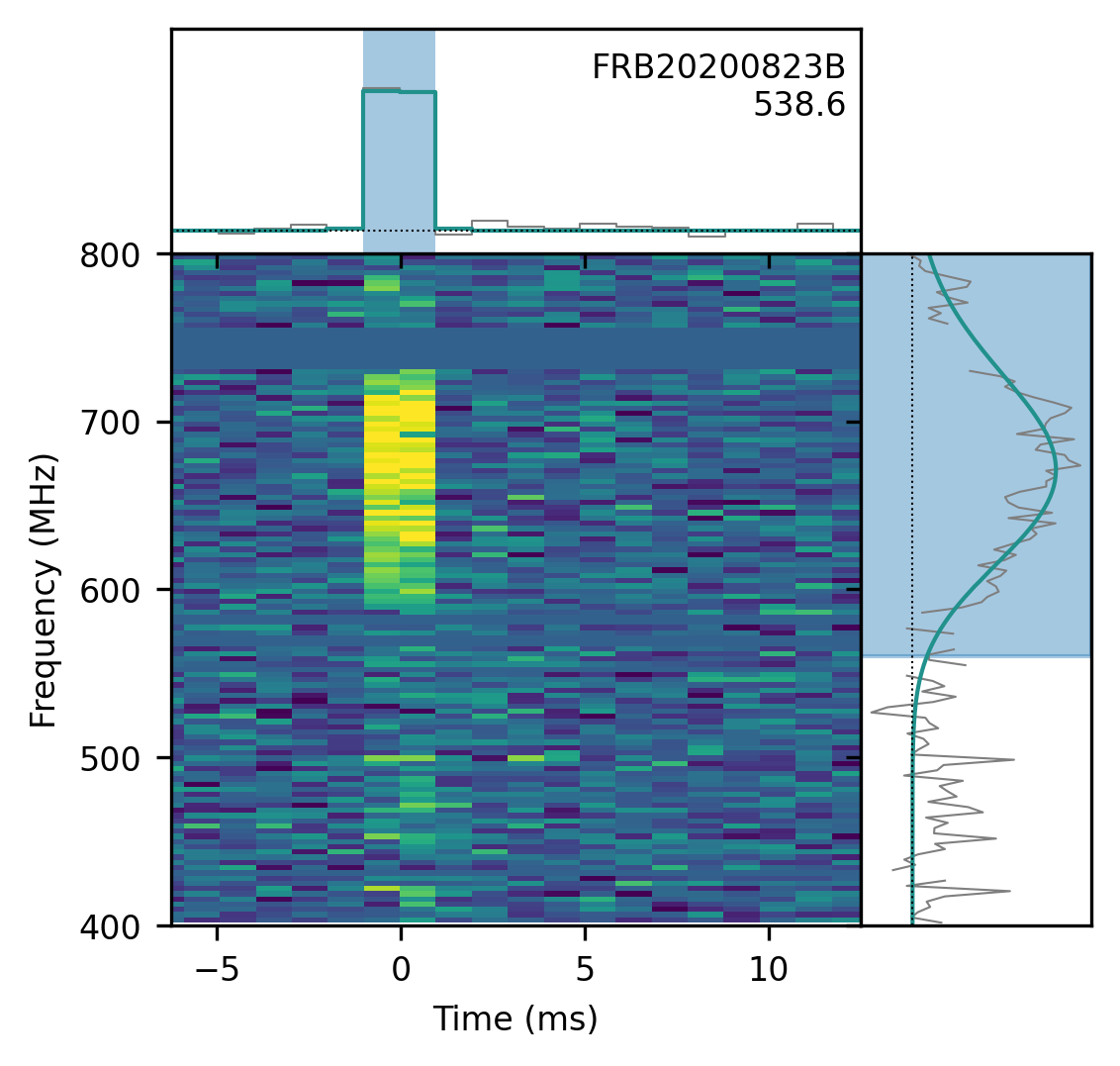

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
61.661± 0.047degrees
dec
28.669± 0.158degrees
gl
166.65degrees
gb
-17.19degrees

Detection and dispersion

bonsai_snr
31.4
snr_fitb
51.5
bonsai_dm
538.6pc cm⁻³
dm_fitb
538.6130± 0.00458pc cm⁻³
dm_exc_ne2001
449.6pc cm⁻³
dm_exc_ymw16
432.3pc cm⁻³

Arrival time

mjd_400
59084.58095788467± 8.83 × 10⁻¹⁰MJD
mjd_inf
59084.58079637369± 1.63 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000263± 0.0000032s
scat_time
0.000000s

Flux and spectrum

flux
2.39± 0.76Jy
fluence
3.72± 1.18Jy ms
peak_freq
671.0MHz
low_freq
560.0MHz
high_freq
800.2MHz
sp_idx
72.76± 4.61
sp_run
-70.40± 4.43

Exposure and fluence thresholds

exp_up
107.78± 26.52hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.8Jy ms
low_ft_95
—
up_ft_95
3.1Jy ms

Fit quality

chi_sq
2047295.117
dof
2049942
flag_frac
0.228
