CHIME/FRBPublic data

FRB 20200922A

One-off burst

Event ID
136025724
Arrival, 400 MHz
2020-09-22 19:50:15.175 UTC
Right ascension
179.338°
Declination
34.938°

Loading

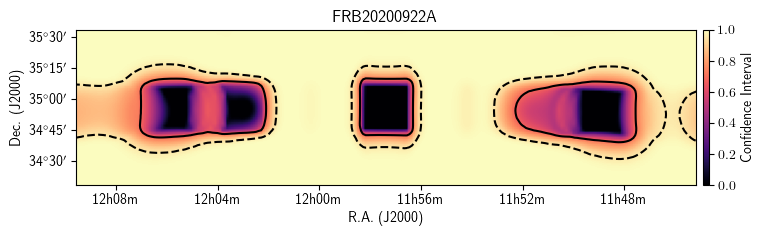

Localization

Loading

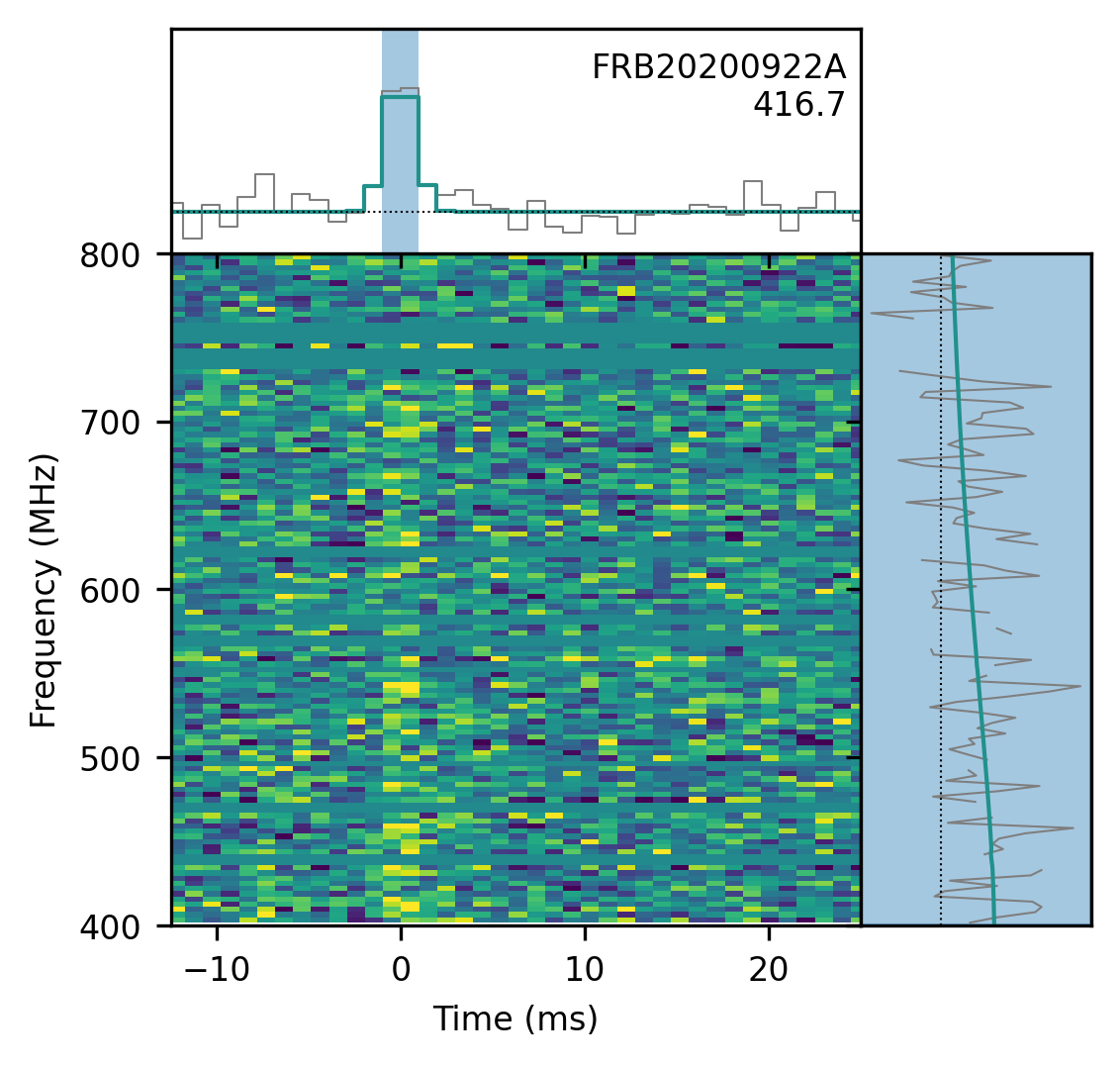

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
179.338± 0.215degrees
dec
34.938± 0.230degrees
gl
175.59degrees
gb
76.05degrees

Detection and dispersion

bonsai_snr
11.5
snr_fitb
13.7
bonsai_dm
415.7pc cm⁻³
dm_fitb
416.7458± 0.01207pc cm⁻³
dm_exc_ne2001
396.6pc cm⁻³
dm_exc_ymw16
401.5pc cm⁻³

Arrival time

mjd_400
59114.826564529416± 1.48 × 10⁻⁹MJD
mjd_inf
59114.8264395621± 3.91 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000673± 0.0000554s
scat_time
0.000000s

Flux and spectrum

flux
0.64± 0.37Jy
fluence
2.81± 1.26Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.50± 1.39
sp_run
-2.66± 2.25

Exposure and fluence thresholds

exp_up
86.79± 51.32hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.5Jy ms
low_ft_95
—
up_ft_95
4.7Jy ms

Fit quality

chi_sq
1717821.046
dof
1718004
flag_frac
0.353
