FRB 20200922B

One-off burst

Event ID
135944443
Arrival, 400 MHz
2020-09-22 16:22:01.585 UTC
Right ascension
124.948°
Declination
86.893°

Loading

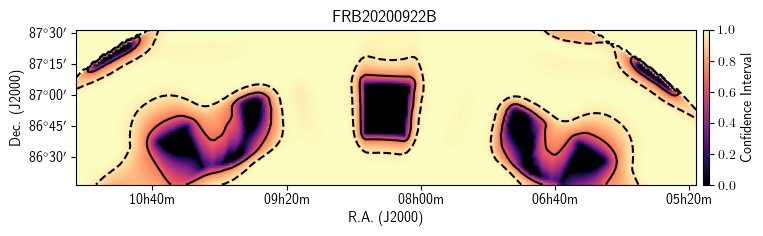

Localization

Loading

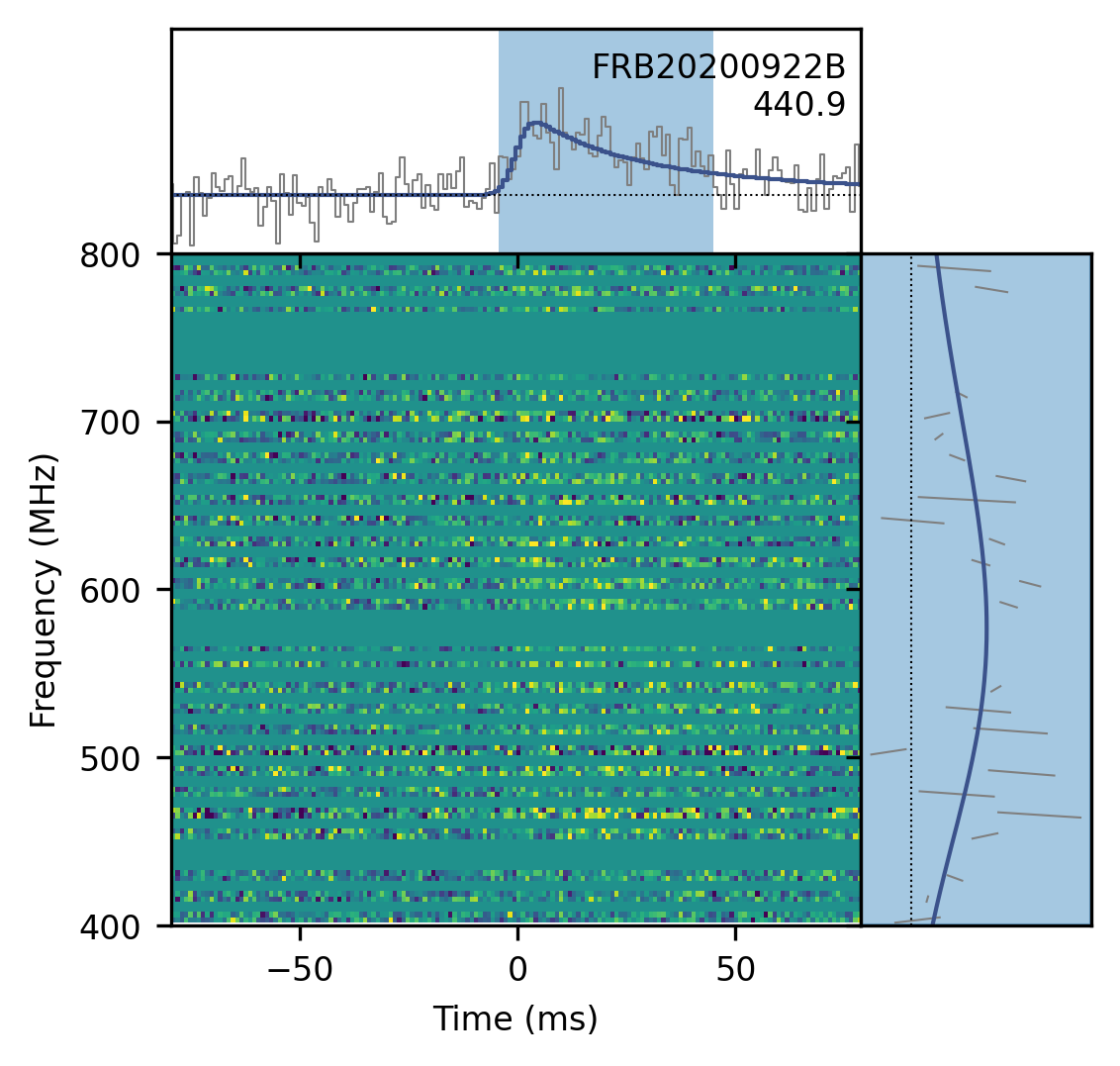

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
124.948± 0.225degrees
dec
86.893± 0.268degrees
gl
126.20degrees
gb
28.26degrees

Detection and dispersion

bonsai_snr
11.5
snr_fitb
19.0
bonsai_dm
452.9pc cm⁻³
dm_fitb
440.8840± 0.17508pc cm⁻³
dm_exc_ne2001
387.1pc cm⁻³
dm_exc_ymw16
390.5pc cm⁻³

Arrival time

mjd_400
59114.681962785464± 3.26 × 10⁻⁸MJD
mjd_inf
59114.681830579946± 6.18 × 10⁻⁸MJD

Burst shape

bc_width
0.04915s
width_fitb
0.002569± 0.0010570s
scat_time
0.162362± 0.0229786s

Flux and spectrum

flux
0.72± 0.29Jy
fluence
13.27± 2.00Jy ms
peak_freq
500.9MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
3.27± 1.46
sp_run
-7.28± 2.00

Exposure and fluence thresholds

exp_up
1366.77± 613.05hour
exp_low
1303.90± 582.41hour
low_ft_68
8.0Jy ms
up_ft_68
5.0Jy ms
low_ft_95
13.0Jy ms
up_ft_95
8.2Jy ms

Fit quality

chi_sq
935189.310
dof
935543
flag_frac
0.648
