FRB 20201022D
A burst from FRB20200619A
- Repeater
- FRB20200619A
- Event ID
- 139268886
- Arrival, 400 MHz
- 2020-10-22 00:11:06.700 UTC
- Right ascension
- 272.508°
- Declination
- 55.523°

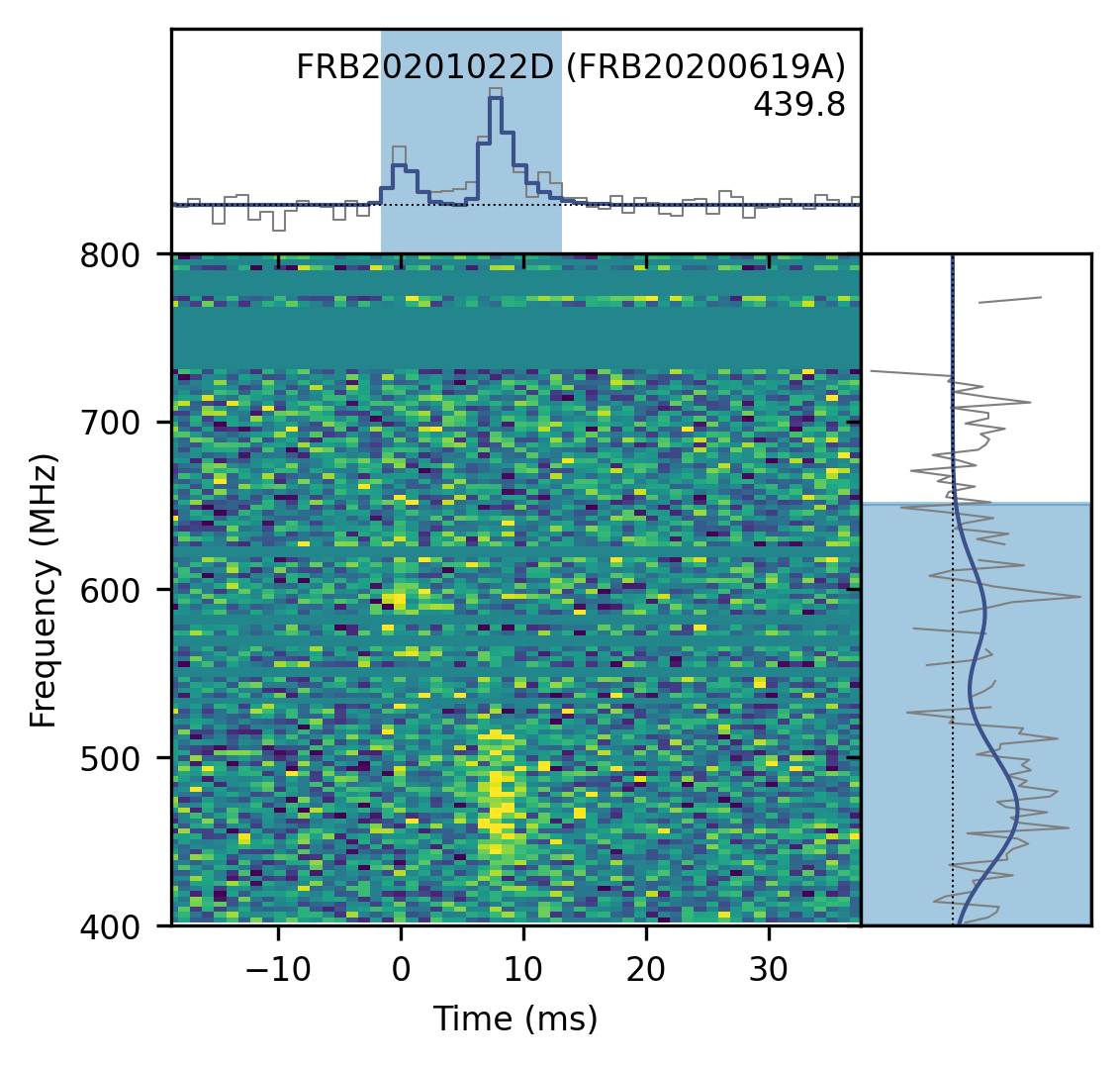

How the sub-bursts differ
This burst has 2 sub-bursts. These 8 measurements differ between them and are highlighted below. Everything else is the same for every sub-burst.
| Measurement | Sub-burst 1 | Sub-burst 2 |
|---|---|---|
| Arrival time, 400 MHzMJD | 59144.0077164363 | 59144.007716520544 |
| Arrival time, infinite frequencyMJD | 59144.00758456746 | 59144.00758465171 |
| Width (fitburst)s | 0.000761 | 0.000463 |
| Peak frequencyMHz | 587.0 | 467.7 |
| Lowest frequencyMHz | 529.4 | 400.2 |
| Highest frequencyMHz | 650.8 | 547.7 |
| Spectral index | 165.67 | 28.74 |
| Spectral running | -216.26 | -92.22 |
Loading
Loading
Notes
- This event should be excluded from parameter inference due to non-nominal telescope operation.
- The pulse emission region was extended during fluence estimation.
- Exposure. Event occurred during a period affected by miscellaneous system problems (e.g. data corruption or timing errors) and should be excluded from population studies.

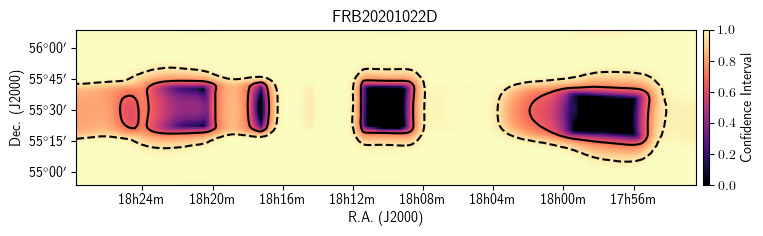

Position
ra- 272.508± 0.217degrees
dec- 55.523± 0.214degrees
gl- 83.92degrees
gb- 27.80degrees
Detection and dispersion
bonsai_snr- 13.0
snr_fitb- 20.2
bonsai_dm- 439.6pc cm⁻³
dm_fitb- 439.7613± 0.02924pc cm⁻³
dm_exc_ne2001- 388.8pc cm⁻³
dm_exc_ymw16- 394.9pc cm⁻³
Arrival time
mjd_400Differs between sub-bursts.- 59144.0077164363± 5.16 × 10⁻⁹MJD
mjd_infDiffers between sub-bursts.- 59144.00758456746± 1.02 × 10⁻⁸MJD
Burst shape
bc_width- 0.01475s
width_fitbDiffers between sub-bursts.- 0.000761± 0.0002719s
scat_time- 0.003091± 0.0004963s
Flux and spectrum
flux- 0.27± 0.15Jy
fluence- 2.43± 1.01Jy ms
peak_freqDiffers between sub-bursts.- 587.0MHz
low_freqDiffers between sub-bursts.- 529.4MHz
high_freqDiffers between sub-bursts.- 650.8MHz
sp_idxDiffers between sub-bursts.- 165.67± 154.74
sp_runDiffers between sub-bursts.- -216.26± 202.94
Exposure and fluence thresholds
exp_up- 128.55± 81.36hour
exp_low- 0.00± 0.00hour
low_ft_68- 0.0Jy ms
up_ft_68- 1.7Jy ms
low_ft_95- 0.0Jy ms
up_ft_95- 3.7Jy ms
Fit quality
chi_sq- 2020216.492
dof- 2020614
flag_frac- 0.239
