FRB 20201120A

One-off burst

Event ID
144286328
Arrival, 400 MHz
2020-11-20 14:34:38.988 UTC
Right ascension
159.931°
Declination
70.856°

Loading

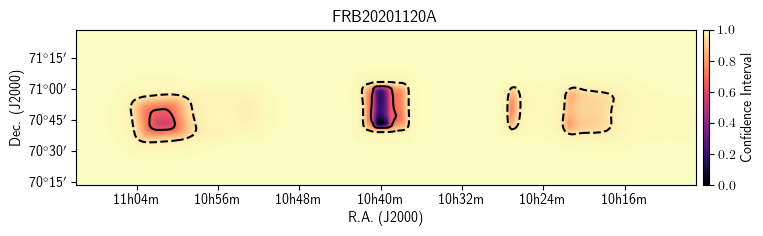

Localization

Loading

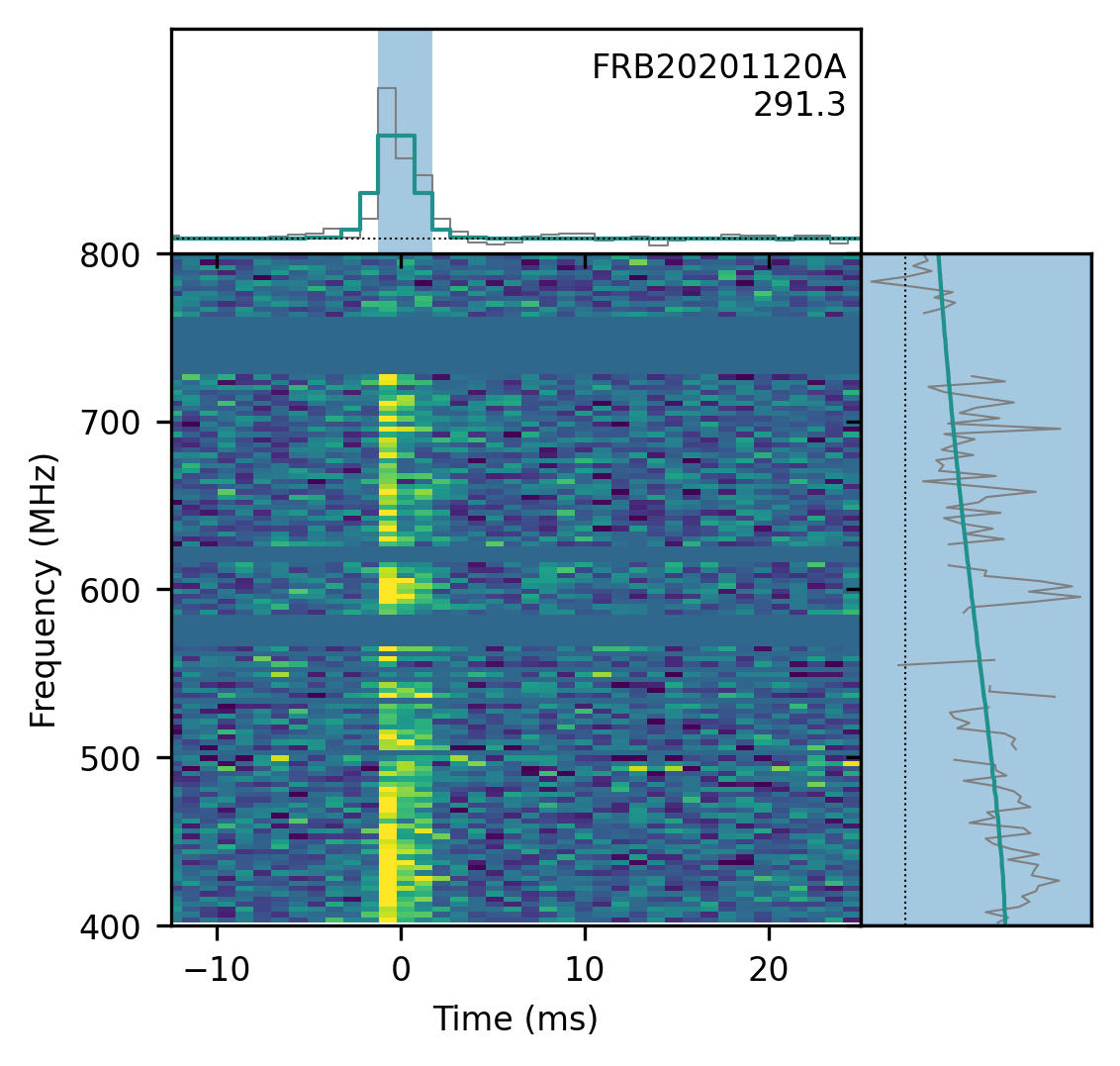

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
159.931± 0.102degrees
dec
70.856± 0.168degrees
gl
136.93degrees
gb
42.51degrees

Detection and dispersion

bonsai_snr
40.5
snr_fitb
47.2
bonsai_dm
290.7pc cm⁻³
dm_fitb
291.2627± 0.00513pc cm⁻³
dm_exc_ne2001
251.7pc cm⁻³
dm_exc_ymw16
260.2pc cm⁻³

Arrival time

mjd_400
59173.607395693325± 6.43 × 10⁻¹⁰MJD
mjd_inf
59173.60730835395± 1.67 × 10⁻⁹MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000997± 0.0000273s
scat_time
0.000000s

Flux and spectrum

flux
2.75± 1.39Jy
fluence
8.99± 4.16Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.30± 0.41
sp_run
-1.90± 0.62

Exposure and fluence thresholds

exp_up
263.34± 102.12hour
exp_low
258.88± 19.95hour
low_ft_68
12.2Jy ms
up_ft_68
1.2Jy ms
low_ft_95
22.8Jy ms
up_ft_95
2.3Jy ms

Fit quality

chi_sq
969732.360
dof
971958
flag_frac
0.219
