CHIME/FRBPublic data

FRB 20201120B

One-off burst

Event ID
144285673
Arrival, 400 MHz
2020-11-20 14:17:51.755 UTC
Right ascension
154.537°
Declination
56.809°

Loading

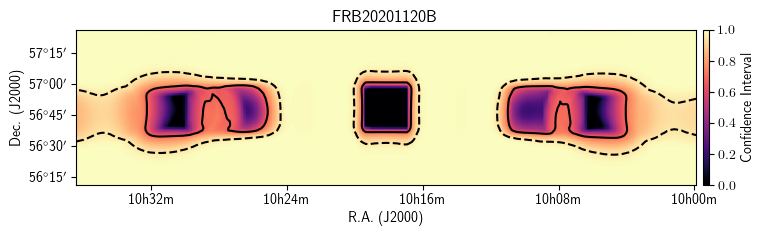

Localization

Loading

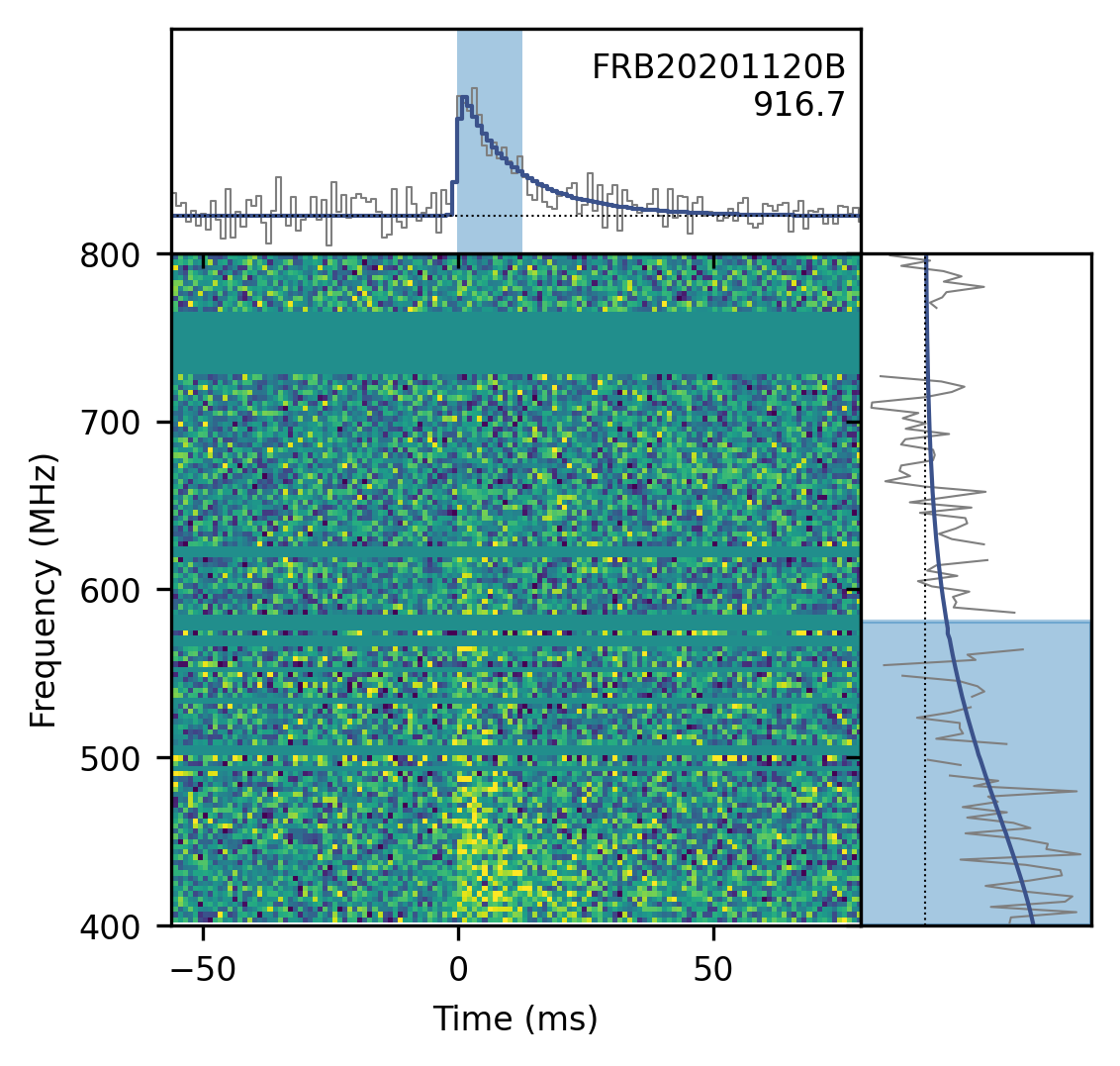

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
154.537± 0.201degrees
dec
56.809± 0.201degrees
gl
154.66degrees
gb
49.80degrees

Detection and dispersion

bonsai_snr
15.4
snr_fitb
24.2
bonsai_dm
916.3pc cm⁻³
dm_fitb
916.7233± 0.00251pc cm⁻³
dm_exc_ne2001
880.1pc cm⁻³
dm_exc_ymw16
890.7pc cm⁻³

Arrival time

mjd_400
59173.59573790831± 2.37 × 10⁻¹⁰MJD
mjd_inf
59173.59546301543± 7.89 × 10⁻¹⁰MJD

Burst shape

bc_width
0.01278s
width_fitb
0.000003± 0.0000143s
scat_time
0.019328± 0.0015967s

Flux and spectrum

flux
0.38± 0.23Jy
fluence
3.52± 1.28Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
580.9MHz
sp_idx
-4.21± 1.11
sp_run
-5.29± 2.77

Exposure and fluence thresholds

exp_up
137.35± 75.84hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.0Jy ms
low_ft_95
—
up_ft_95
3.5Jy ms

Fit quality

chi_sq
2081116.225
dof
2081693
flag_frac
0.216
