FRB 20210720A

One-off burst

Event ID
176679045
Arrival, 400 MHz
2021-07-20 11:18:33.205 UTC
Right ascension
168.528°
Declination
85.004°

Loading

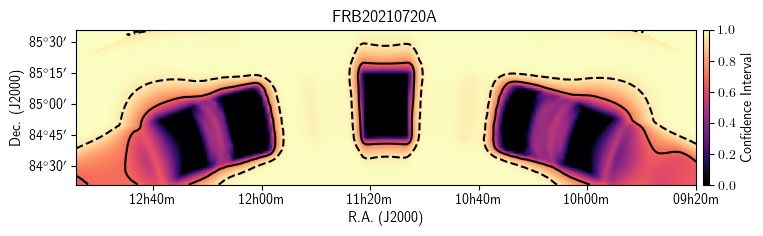

Localization

Loading

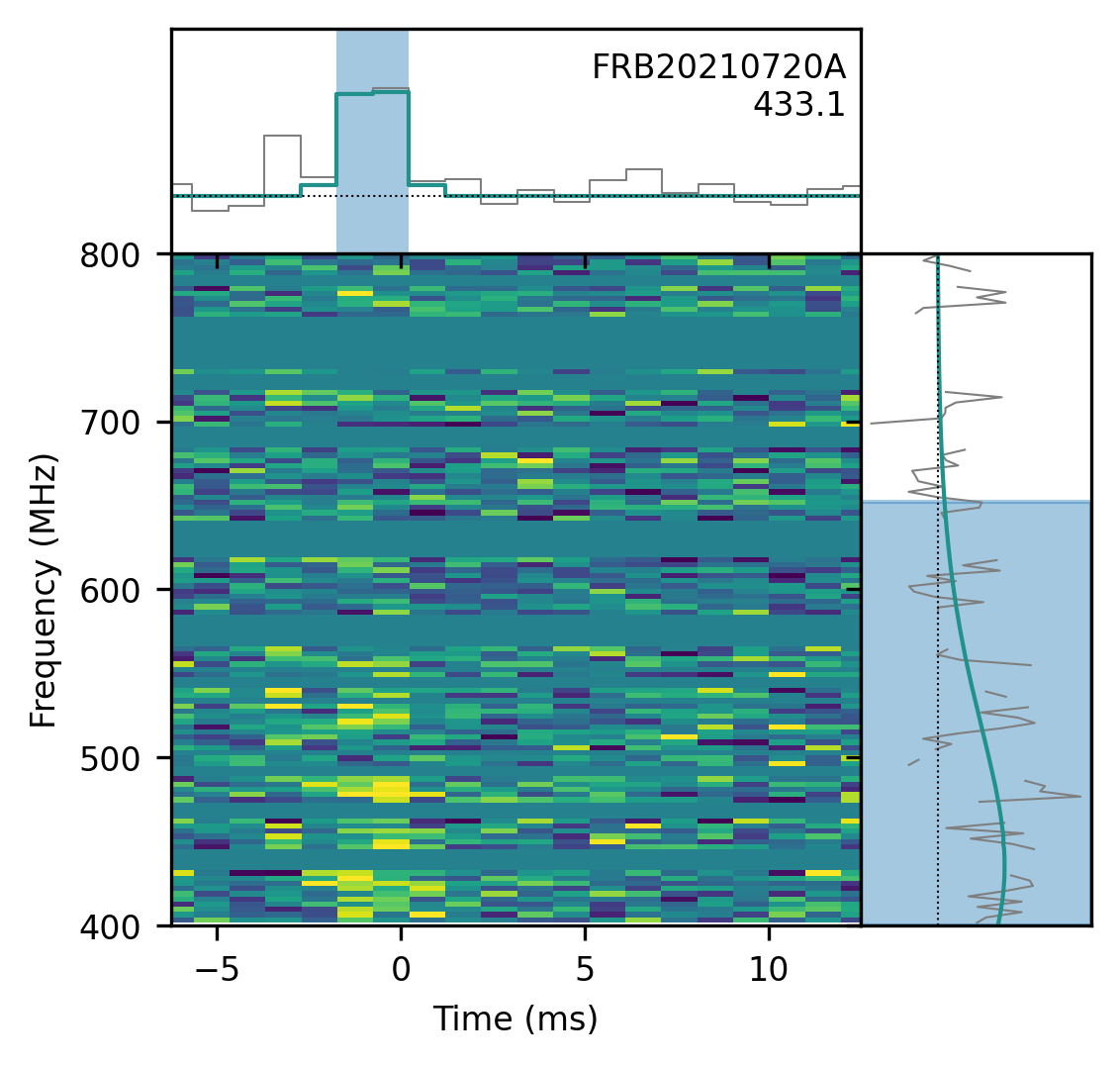

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
168.528± 0.226degrees
dec
85.004± 0.330degrees
gl
125.35degrees
gb
31.66degrees

Detection and dispersion

bonsai_snr
10.1
snr_fitb
12.2
bonsai_dm
433.1pc cm⁻³
dm_fitb
433.0929± 0.01055pc cm⁻³
dm_exc_ne2001
384.0pc cm⁻³
dm_exc_ymw16
389.3pc cm⁻³

Arrival time

mjd_400
59415.471217650986± 9.05 × 10⁻¹⁰MJD
mjd_inf
59415.47108778175± 3.29 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000457± 0.0000357s
scat_time
0.000000s

Flux and spectrum

flux
0.73± 0.38Jy
fluence
1.87± 0.68Jy ms
peak_freq
430.8MHz
low_freq
400.2MHz
high_freq
652.1MHz
sp_idx
1.98± 2.98
sp_run
-13.40± 8.32

Exposure and fluence thresholds

exp_up
768.07± 358.50hour
exp_low
877.58± 418.88hour
low_ft_68
0.8Jy ms
up_ft_68
0.4Jy ms
low_ft_95
1.5Jy ms
up_ft_95
0.8Jy ms

Fit quality

chi_sq
1575787.696
dof
1575930
flag_frac
0.406
