CHIME/FRBPublic data

FRB 20210720B

One-off burst

Event ID
176631691
Arrival, 400 MHz
2021-07-20 02:21:01.795 UTC
Right ascension
213.080°
Declination
22.454°

Loading

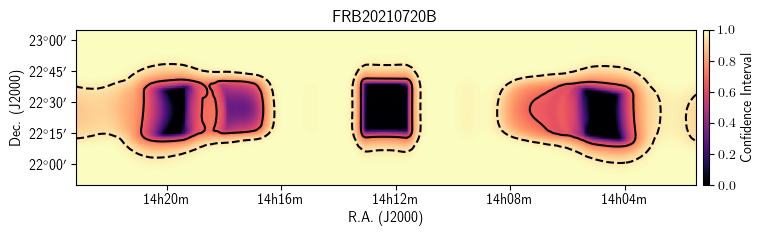

Localization

Loading

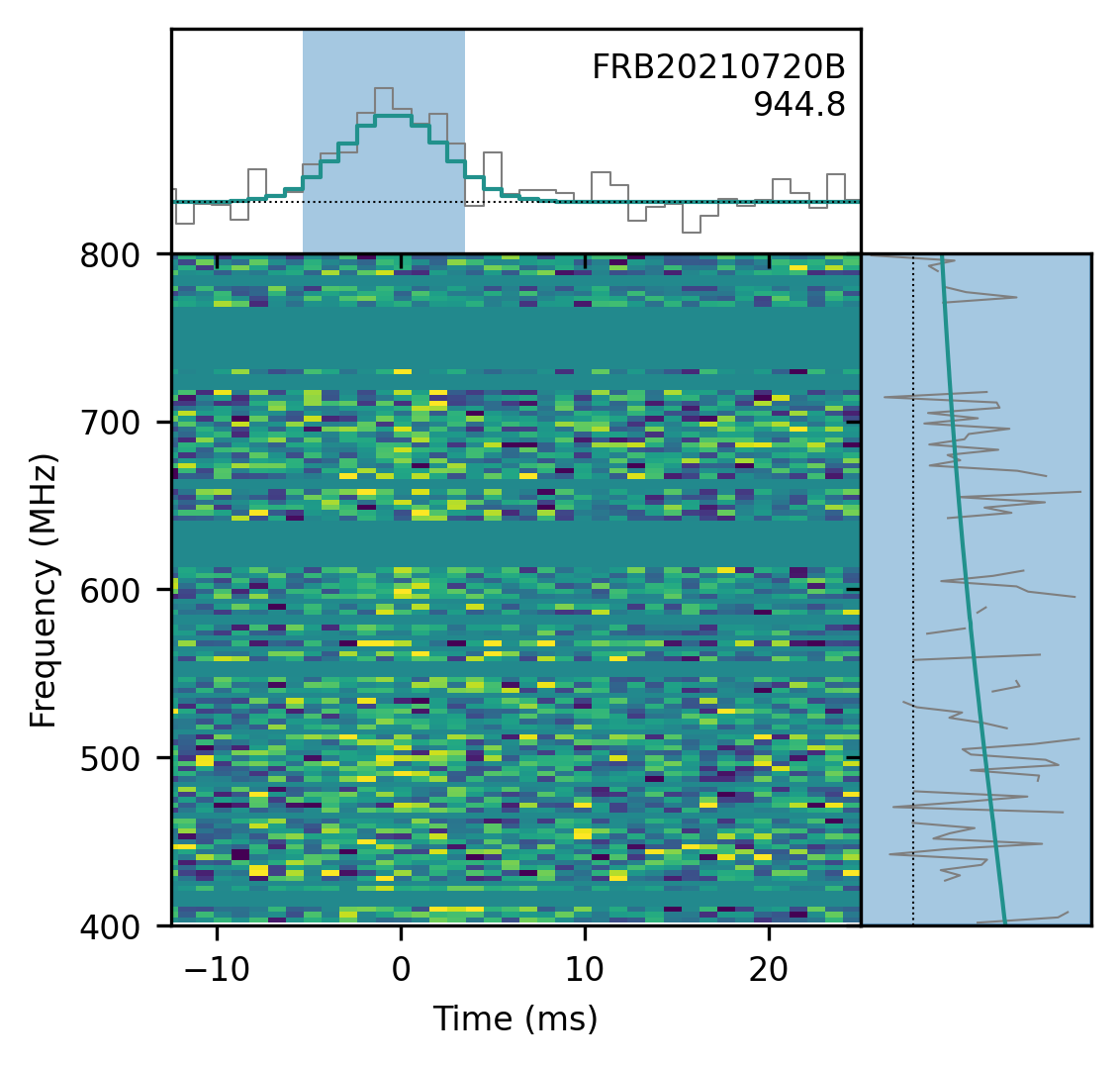

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
213.080± 0.207degrees
dec
22.454± 0.239degrees
gl
23.07degrees
gb
71.08degrees

Detection and dispersion

bonsai_snr
12.5
snr_fitb
13.9
bonsai_dm
944.2pc cm⁻³
dm_fitb
944.8241± 0.05539pc cm⁻³
dm_exc_ne2001
922.8pc cm⁻³
dm_exc_ymw16
923.6pc cm⁻³

Arrival time

mjd_400
59415.09793743658± 7.63 × 10⁻⁹MJD
mjd_inf
59415.09765411728± 1.83 × 10⁻⁸MJD

Burst shape

bc_width
0.00885s
width_fitb
0.002699± 0.0003049s
scat_time
0.000000s

Flux and spectrum

flux
1.02± 0.37Jy
fluence
8.52± 1.50Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.90± 1.52
sp_run
-1.15± 2.29

Exposure and fluence thresholds

exp_up
77.19± 45.40hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
4.8Jy ms
low_ft_95
—
up_ft_95
8.0Jy ms

Fit quality

chi_sq
839615.994
dof
839802
flag_frac
0.684
