CHIME/FRBPublic data

FRB 20220712A

One-off burst

Event ID
235578449
Arrival, 400 MHz
2022-07-12 13:23:41.553 UTC
Right ascension
9.637°
Declination
75.279°

Loading

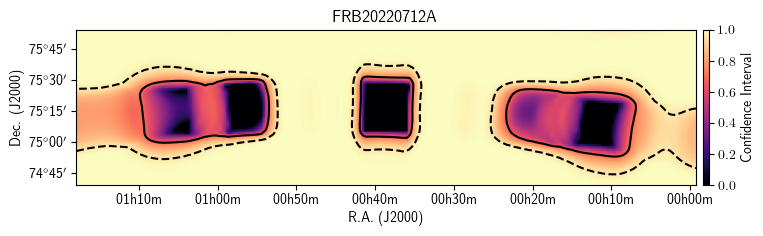

Localization

Loading

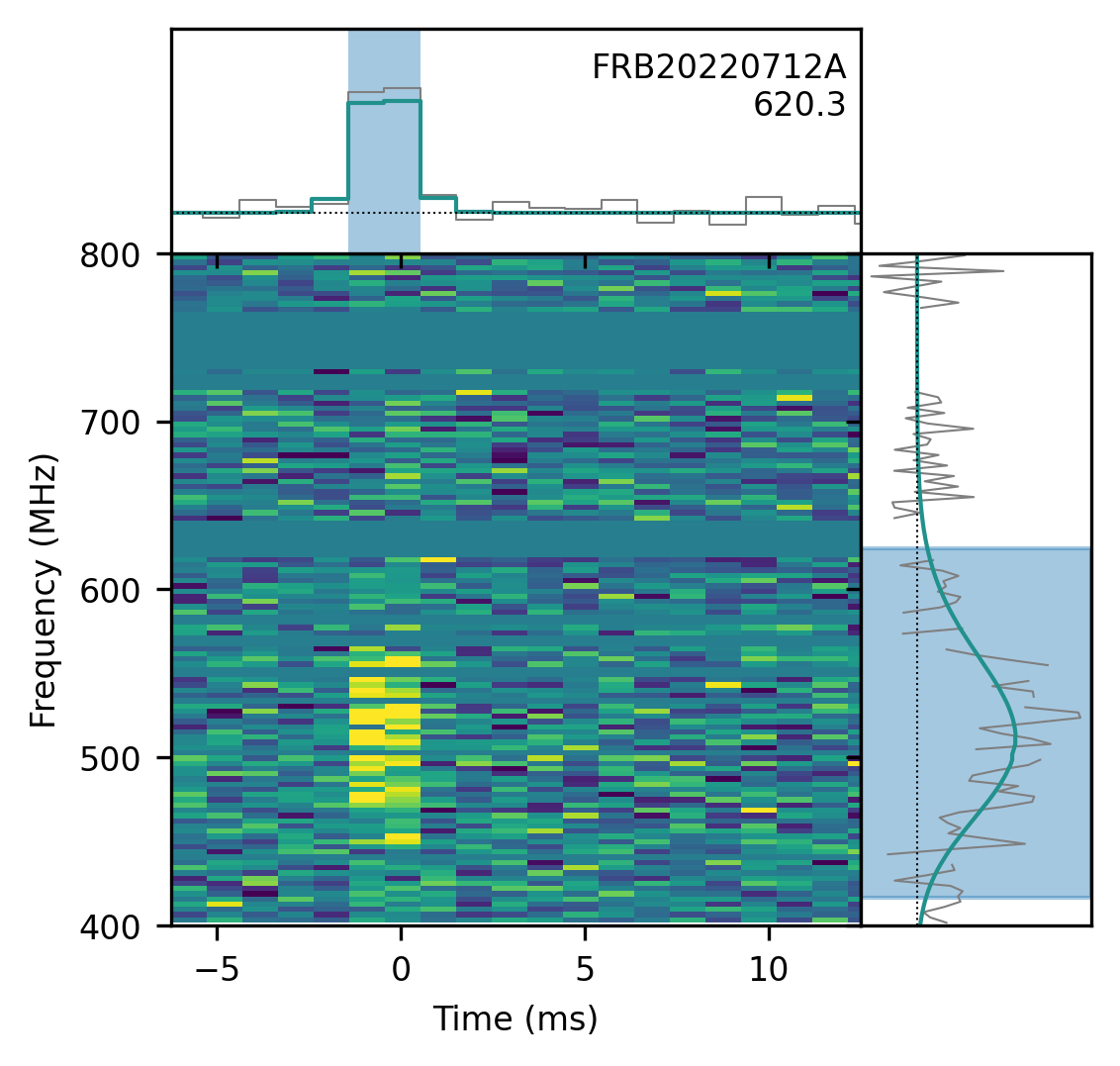

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
9.637± 0.216degrees
dec
75.279± 0.247degrees
gl
122.09degrees
gb
12.43degrees

Detection and dispersion

bonsai_snr
11.7
snr_fitb
17.3
bonsai_dm
619.9pc cm⁻³
dm_fitb
620.2810± 0.01296pc cm⁻³
dm_exc_ne2001
508.9pc cm⁻³
dm_exc_ymw16
467.2pc cm⁻³

Arrival time

mjd_400
59772.55811983181± 1.52 × 10⁻⁹MJD
mjd_inf
59772.55793383151± 4.17 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000475± 0.0000203s
scat_time
0.000000s

Flux and spectrum

flux
0.57± 0.28Jy
fluence
0.96± 0.53Jy ms
peak_freq
510.2MHz
low_freq
416.8MHz
high_freq
624.6MHz
sp_idx
27.33± 5.55
sp_run
-56.25± 10.79

Exposure and fluence thresholds

exp_up
282.85± 160.29hour
exp_low
175.74± 120.60hour
low_ft_68
4.4Jy ms
up_ft_68
0.7Jy ms
low_ft_95
9.0Jy ms
up_ft_95
1.5Jy ms

Fit quality

chi_sq
686226.258
dof
686520
flag_frac
0.324
