FRB 20220712B

One-off burst

Event ID
235625554
Arrival, 400 MHz
2022-07-12 18:31:45.671 UTC
Right ascension
89.299°
Declination
63.813°

Loading

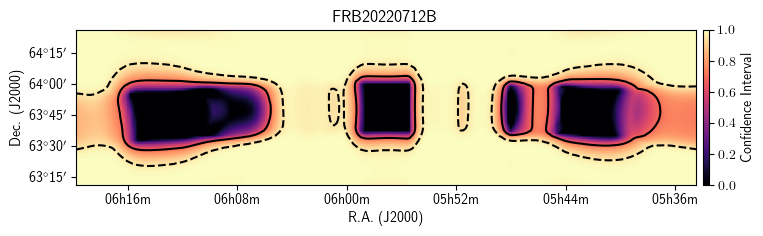

Localization

Loading

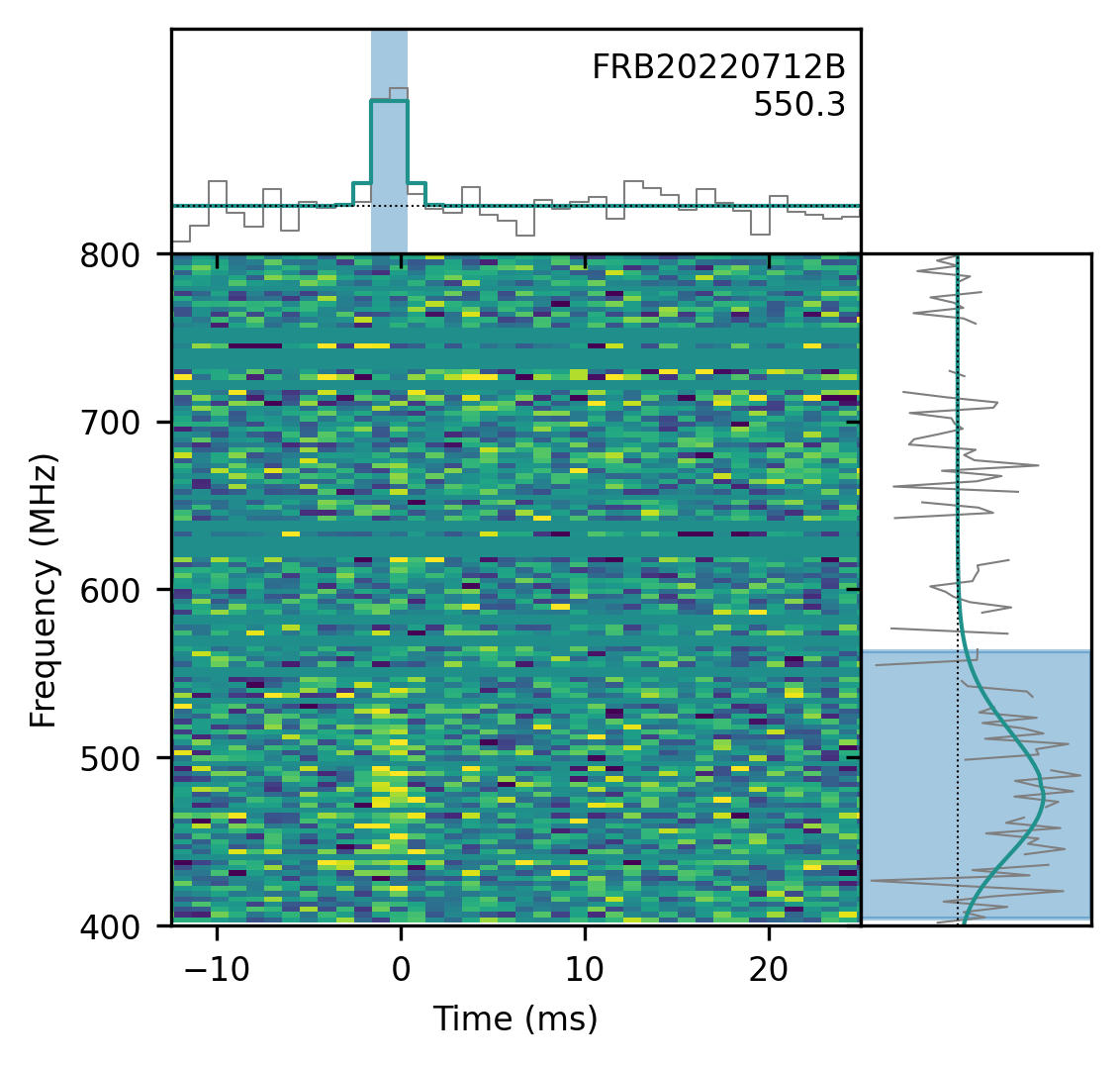

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
89.299± 0.243degrees
dec
63.813± 0.253degrees
gl
149.83degrees
gb
18.49degrees

Detection and dispersion

bonsai_snr
8.5
snr_fitb
11.4
bonsai_dm
549.5pc cm⁻³
dm_fitb
550.2684± 0.02731pc cm⁻³
dm_exc_ne2001
468.9pc cm⁻³
dm_exc_ymw16
453.6pc cm⁻³

Arrival time

mjd_400
59772.77205638273± 2.30 × 10⁻⁹MJD
mjd_inf
59772.77189137671± 8.50 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000612± 0.0000463s
scat_time
0.000000s

Flux and spectrum

flux
0.37± 0.22Jy
fluence
0.88± 0.54Jy ms
peak_freq
476.9MHz
low_freq
404.1MHz
high_freq
562.9MHz
sp_idx
29.38± 7.08
sp_run
-83.78± 19.71

Exposure and fluence thresholds

exp_up
167.37± 100.63hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.8Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
1421653.079
dof
1421778
flag_frac
0.311
