FRB 20220714B

One-off burst

Event ID
235866320
Arrival, 400 MHz
2022-07-14 07:40:21.831 UTC
Right ascension
290.047°
Declination
48.085°

Loading

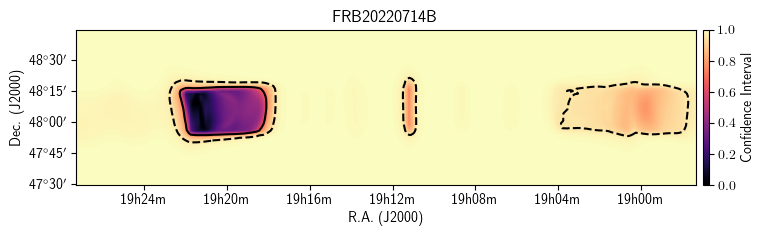

Localization

Loading

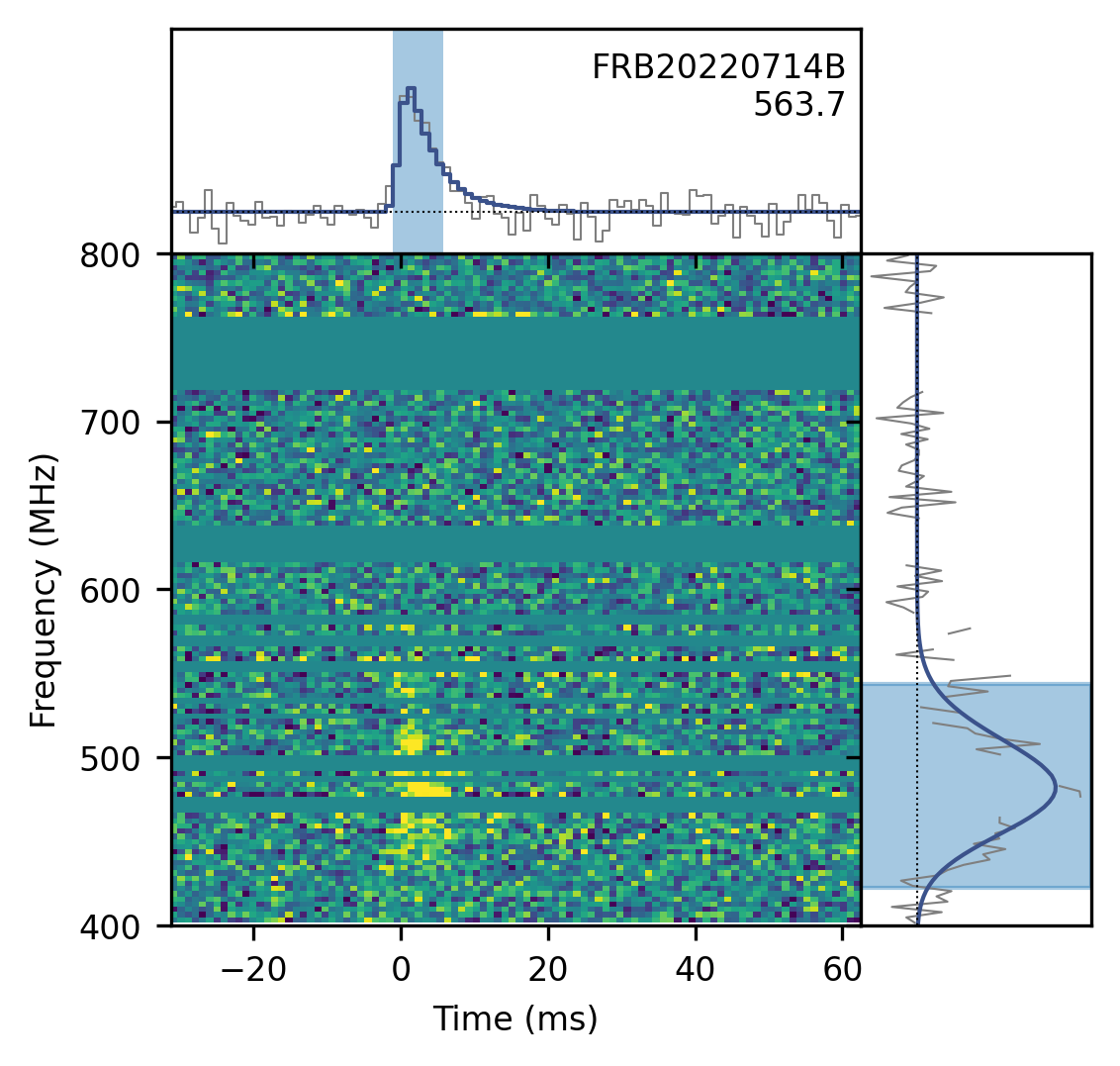

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
290.047± 0.350degrees
dec
48.085± 0.195degrees
gl
79.51degrees
gb
15.36degrees

Detection and dispersion

bonsai_snr
13.1
snr_fitb
20.6
bonsai_dm
562.1pc cm⁻³
dm_fitb
563.7023± 0.05750pc cm⁻³
dm_exc_ne2001
476.1pc cm⁻³
dm_exc_ymw16
477.9pc cm⁻³

Arrival time

mjd_400
59774.31969711775± 5.65 × 10⁻⁹MJD
mjd_inf
59774.31952808337± 1.81 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.000673± 0.0001505s
scat_time
0.008186± 0.0009636s

Flux and spectrum

flux
0.38± 0.35Jy
fluence
1.19± 1.50Jy ms
peak_freq
479.3MHz
low_freq
422.3MHz
high_freq
543.9MHz
sp_idx
51.85± 7.65
sp_run
-143.76± 20.79

Exposure and fluence thresholds

exp_up
123.36± 61.52hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
2.2Jy ms

Fit quality

chi_sq
1677570.682
dof
1677989
flag_frac
0.368
