FRB 20220714A

One-off burst

Event ID
235859500
Arrival, 400 MHz
2022-07-14 07:14:26.411 UTC
Right ascension
281.414°
Declination
24.063°

Loading

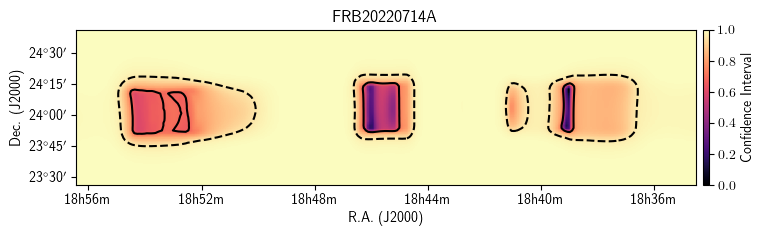

Localization

Loading

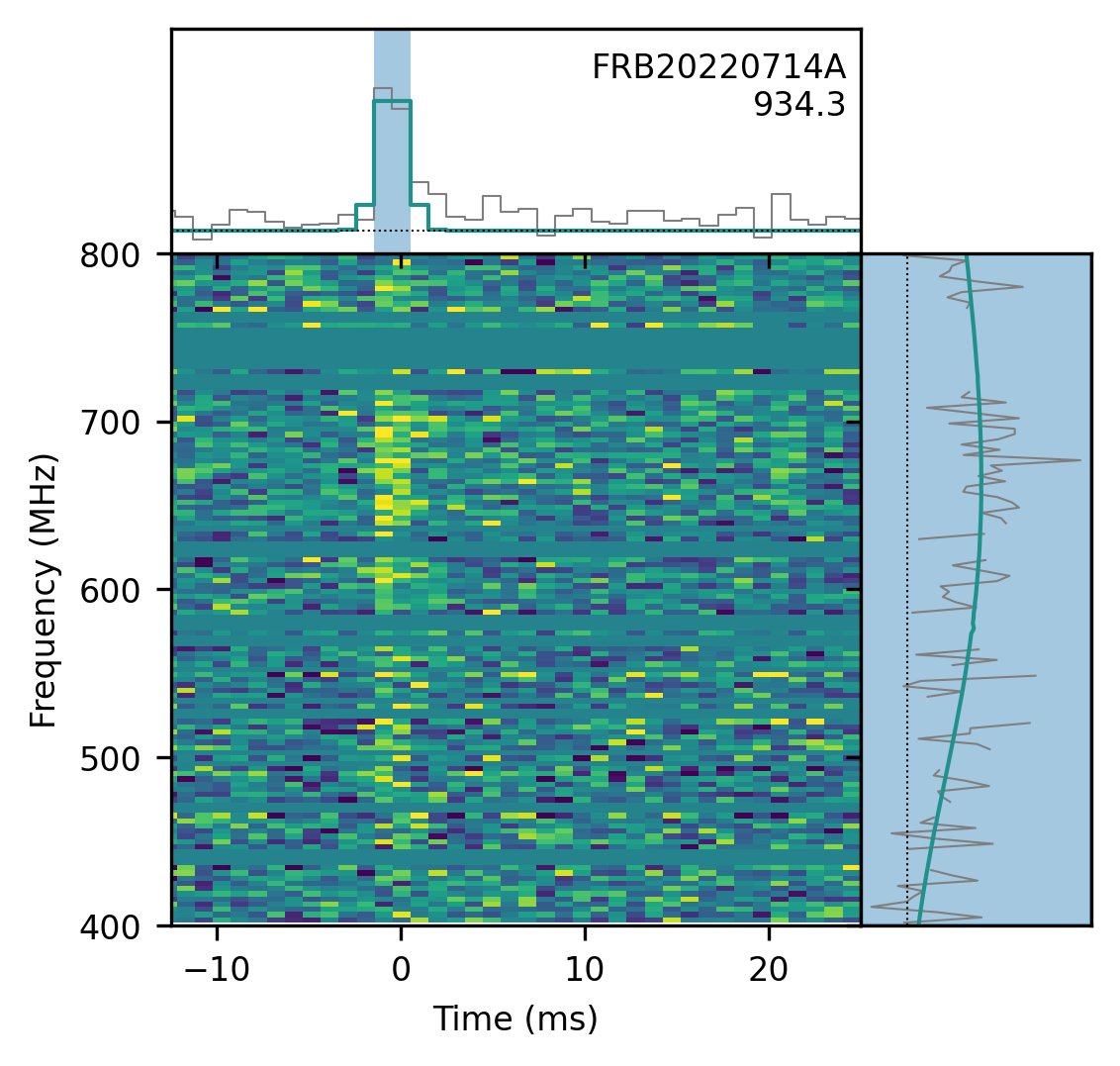

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
281.414± 0.148degrees
dec
24.063± 0.201degrees
gl
54.04degrees
gb
11.91degrees

Detection and dispersion

bonsai_snr
15.8
snr_fitb
21.2
bonsai_dm
933.7pc cm⁻³
dm_fitb
934.3384± 0.00998pc cm⁻³
dm_exc_ne2001
801.3pc cm⁻³
dm_exc_ymw16
816.6pc cm⁻³

Arrival time

mjd_400
59774.301694576134± 1.83 × 10⁻⁹MJD
mjd_inf
59774.301414401125± 3.50 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000598± 0.0000327s
scat_time
0.000000s

Flux and spectrum

flux
1.15± 0.40Jy
fluence
2.79± 1.27Jy ms
peak_freq
658.4MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.38± 1.85
sp_run
-6.40± 2.01

Exposure and fluence thresholds

exp_up
90.04± 44.97hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.6Jy ms
low_ft_95
—
up_ft_95
2.9Jy ms

Fit quality

chi_sq
1720152.717
dof
1720596
flag_frac
0.352
