FRB 20220716E

One-off burst

Event ID
236201287
Arrival, 400 MHz
2022-07-16 12:59:44.053 UTC
Right ascension
8.555°
Declination
59.712°

Loading

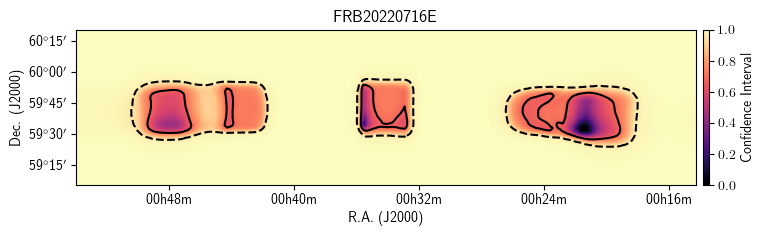

Localization

Loading

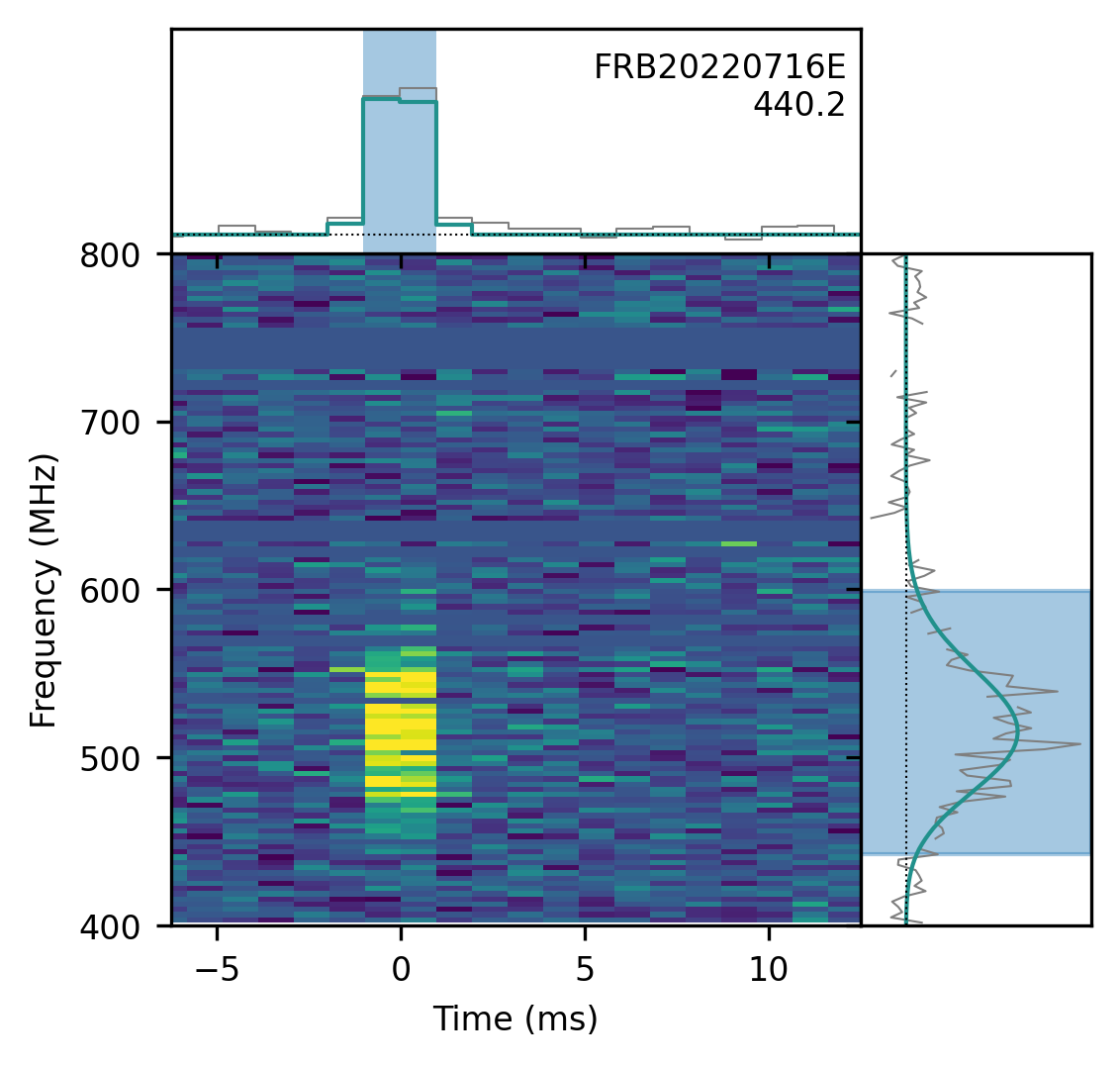

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
8.555± 0.187degrees
dec
59.712± 0.186degrees
gl
120.76degrees
gb
-3.09degrees

Detection and dispersion

bonsai_snr
25.2
snr_fitb
49.7
bonsai_dm
439.6pc cm⁻³
dm_fitb
440.1780± 0.00613pc cm⁻³
dm_exc_ne2001
221.7pc cm⁻³
dm_exc_ymw16
178.0pc cm⁻³

Arrival time

mjd_400
59776.541482091074± 7.29 × 10⁻¹⁰MJD
mjd_inf
59776.54135009725± 1.98 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000435± 0.0000079s
scat_time
0.000000s

Flux and spectrum

flux
1.53± 0.31Jy
fluence
3.99± 0.44Jy ms
peak_freq
515.0MHz
low_freq
442.7MHz
high_freq
599.1MHz
sp_idx
50.70± 2.81
sp_run
-100.54± 5.47

Exposure and fluence thresholds

exp_up
161.96± 82.93hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.4Jy ms

Fit quality

chi_sq
736945.010
dof
739406
flag_frac
0.272
