CHIME/FRBPublic data

FRB 20220717B

One-off burst

Event ID
236300651
Arrival, 400 MHz
2022-07-17 00:38:57.170 UTC
Right ascension
181.605°
Declination
74.420°

Loading

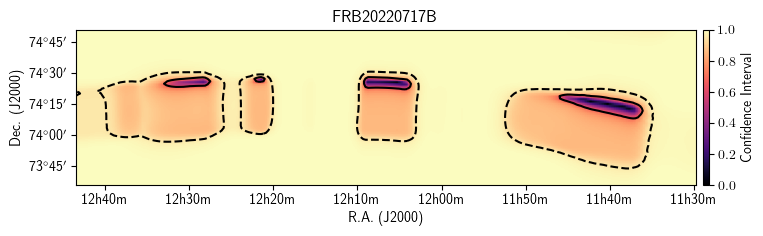

Localization

Loading

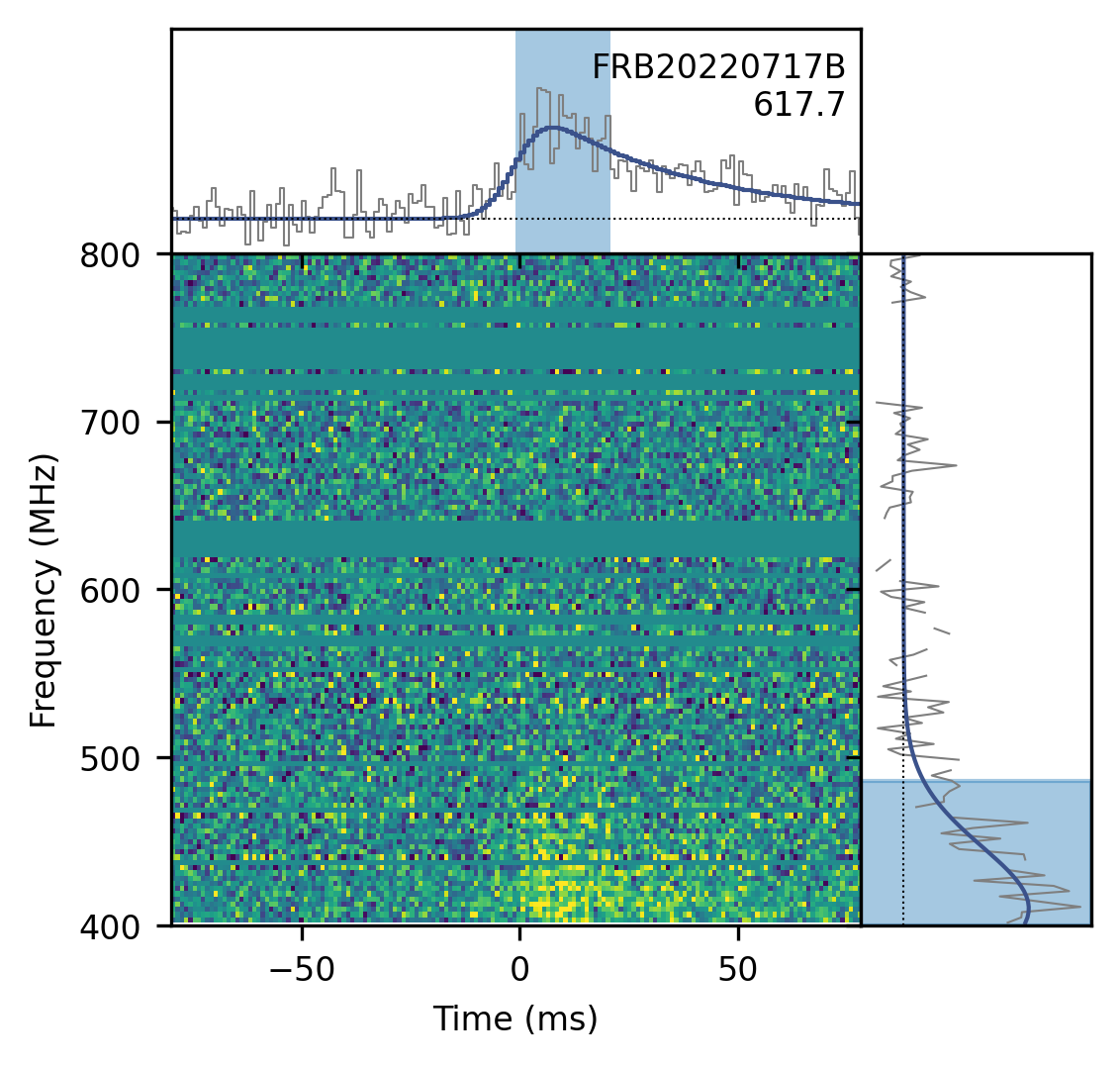

Waterfall

Position

ra
181.605± 0.187degrees
dec
74.420± 0.049degrees
gl
127.00degrees
gb
42.35degrees

Detection and dispersion

bonsai_snr
14.4
snr_fitb
33.0
bonsai_dm
616.3pc cm⁻³
dm_fitb
617.7017± 0.29014pc cm⁻³
dm_exc_ne2001
578.4pc cm⁻³
dm_exc_ymw16
586.1pc cm⁻³

Arrival time

mjd_400
59777.02705057898± 1.40 × 10⁻⁸MJD
mjd_inf
59777.026865352105± 8.81 × 10⁻⁸MJD

Burst shape

bc_width
0.02163s
width_fitb
0.005390± 0.0008518s
scat_time
0.047289± 0.0043410s

Flux and spectrum

flux
0.44± 0.22Jy
fluence
7.31± 2.62Jy ms
peak_freq
400.5MHz
low_freq
400.2MHz
high_freq
486.0MHz
sp_idx
0.10± 2.11
sp_run
-61.53± 13.38

Exposure and fluence thresholds

exp_up
265.54± 154.77hour
exp_low
191.33± 122.34hour
low_ft_68
17.9Jy ms
up_ft_68
2.7Jy ms
low_ft_95
36.1Jy ms
up_ft_95
5.1Jy ms

Fit quality

chi_sq
1733285.032
dof
1734365
flag_frac
0.347
