FRB 20220722B

One-off burst

Event ID
237105221
Arrival, 400 MHz
2022-07-22 18:24:18.316 UTC
Right ascension
96.370°
Declination
61.441°

Loading

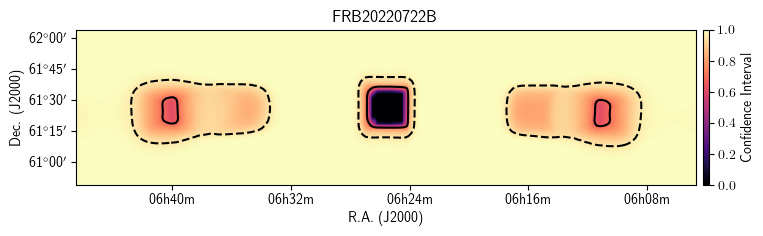

Localization

Loading

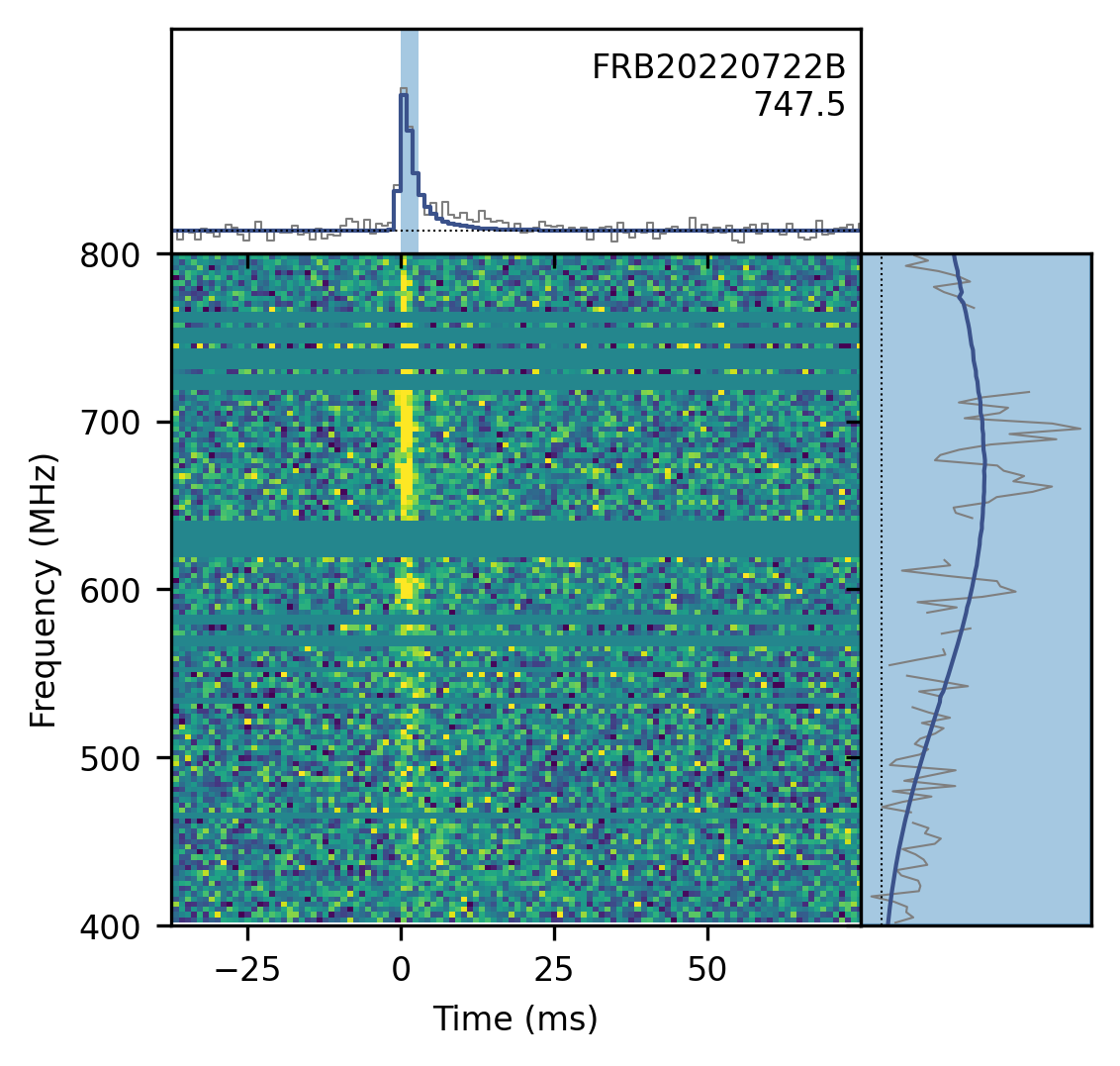

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
96.370± 0.166degrees
dec
61.441± 0.165degrees
gl
153.43degrees
gb
20.64degrees

Detection and dispersion

bonsai_snr
30.9
snr_fitb
40.5
bonsai_dm
746.9pc cm⁻³
dm_fitb
747.4584± 0.00974pc cm⁻³
dm_exc_ne2001
673.0pc cm⁻³
dm_exc_ymw16
661.9pc cm⁻³

Arrival time

mjd_400
59782.76687865716± 1.97 × 10⁻⁹MJD
mjd_inf
59782.76665452084± 3.53 × 10⁻⁹MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000317± 0.0000266s
scat_time
0.011284± 0.0007012s

Flux and spectrum

flux
1.54± 0.40Jy
fluence
6.55± 1.62Jy ms
peak_freq
625.4MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.60± 1.26
sp_run
-7.39± 1.32

Exposure and fluence thresholds

exp_up
194.57± 72.25hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.4Jy ms
low_ft_95
—
up_ft_95
4.1Jy ms

Fit quality

chi_sq
1851315.719
dof
1852949
flag_frac
0.302
