FRB 20220722C

One-off burst

Event ID
237111792
Arrival, 400 MHz
2022-07-22 19:12:13.859 UTC
Right ascension
107.078°
Declination
40.654°

Loading

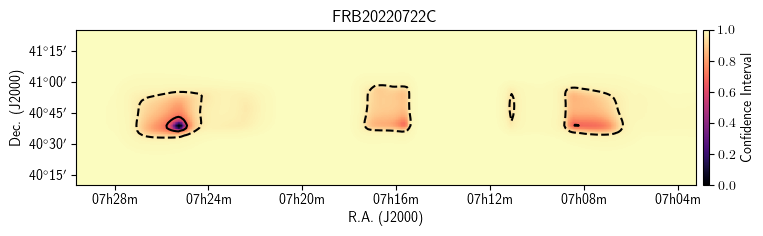

Localization

Loading

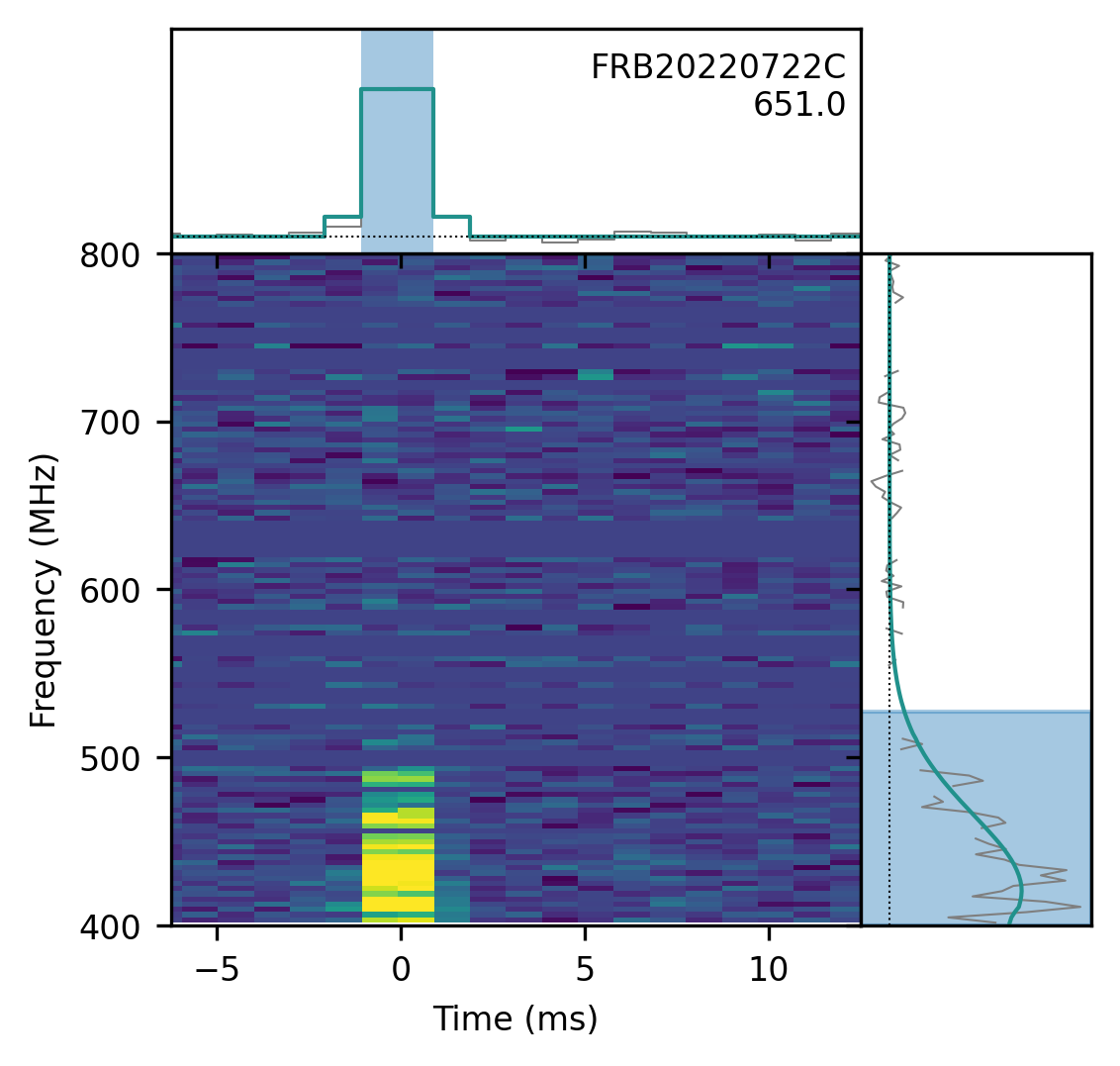

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
107.078± 0.017degrees
dec
40.654± 0.004degrees
gl
176.70degrees
gb
20.29degrees

Detection and dispersion

bonsai_snr
47.8
snr_fitb
74.7
bonsai_dm
650.6pc cm⁻³
dm_fitb
651.0073± 0.00123pc cm⁻³
dm_exc_ne2001
572.1pc cm⁻³
dm_exc_ymw16
555.1pc cm⁻³

Arrival time

mjd_400
59782.800160409344± 5.79 × 10⁻¹¹MJD
mjd_inf
59782.79996519529± 3.73 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000317± 0.0000013s
scat_time
0.000000s

Flux and spectrum

flux
2.16± 0.89Jy
fluence
5.33± 2.02Jy ms
peak_freq
415.8MHz
low_freq
400.2MHz
high_freq
527.3MHz
sp_idx
3.12± 0.74
sp_run
-40.76± 3.58

Exposure and fluence thresholds

exp_up
101.72± 54.66hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.1Jy ms
low_ft_95
—
up_ft_95
2.0Jy ms

Fit quality

chi_sq
1751798.523
dof
1757370
flag_frac
0.338
