FRB 20220724D

One-off burst

Event ID
237290677
Arrival, 400 MHz
2022-07-24 06:05:43.566 UTC
Right ascension
279.691°
Declination
71.904°

Loading

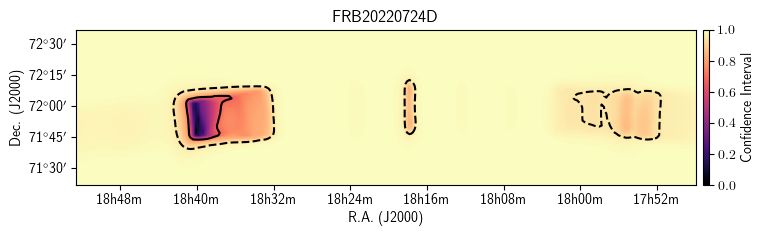

Localization

Loading

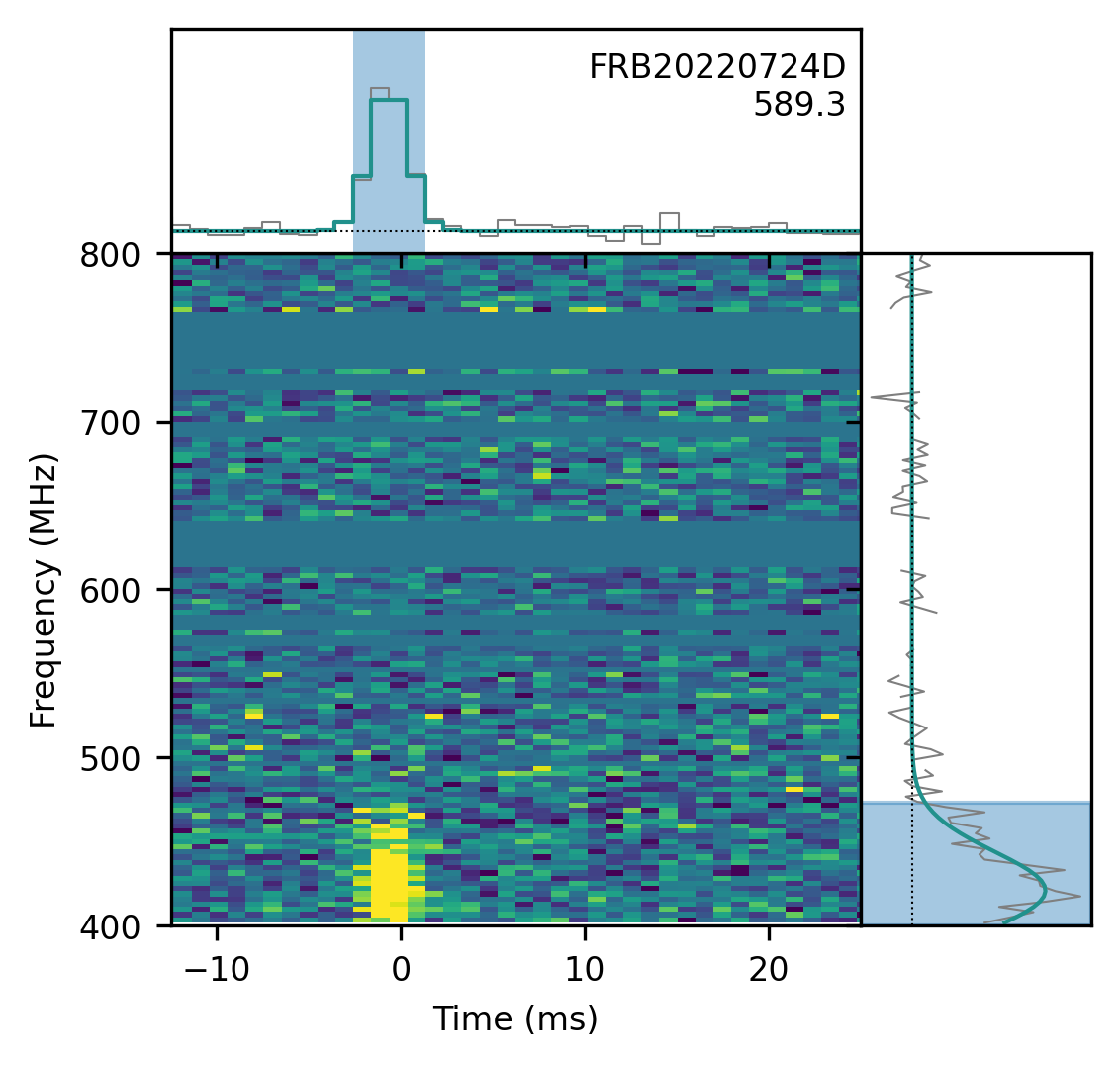

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
279.691± 0.184degrees
dec
71.904± 0.176degrees
gl
102.63degrees
gb
26.66degrees

Detection and dispersion

bonsai_snr
19.4
snr_fitb
36.7
bonsai_dm
588.4pc cm⁻³
dm_fitb
589.3342± 0.01978pc cm⁻³
dm_exc_ne2001
535.8pc cm⁻³
dm_exc_ymw16
539.7pc cm⁻³

Arrival time

mjd_400
59784.25397646266± 6.90 × 10⁻¹⁰MJD
mjd_inf
59784.25379974219± 5.97 × 10⁻⁹MJD

Burst shape

bc_width
0.00393s
width_fitb
0.000851± 0.0000239s
scat_time
0.000000s

Flux and spectrum

flux
1.05± 0.73Jy
fluence
2.47± 1.55Jy ms
peak_freq
420.7MHz
low_freq
400.2MHz
high_freq
473.0MHz
sp_idx
16.80± 2.98
sp_run
-167.76± 22.34

Exposure and fluence thresholds

exp_up
261.70± 139.17hour
exp_low
138.01± 112.65hour
low_ft_68
19.1Jy ms
up_ft_68
2.0Jy ms
low_ft_95
38.0Jy ms
up_ft_95
3.9Jy ms

Fit quality

chi_sq
1730915.986
dof
1732260
flag_frac
0.347
