FRB 20220726B

One-off burst

Event ID
237537161
Arrival, 400 MHz
2022-07-26 16:38:35.035 UTC
Right ascension
73.679°
Declination
69.884°

Loading

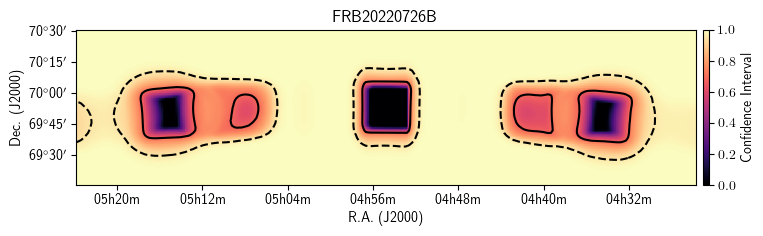

Localization

Loading

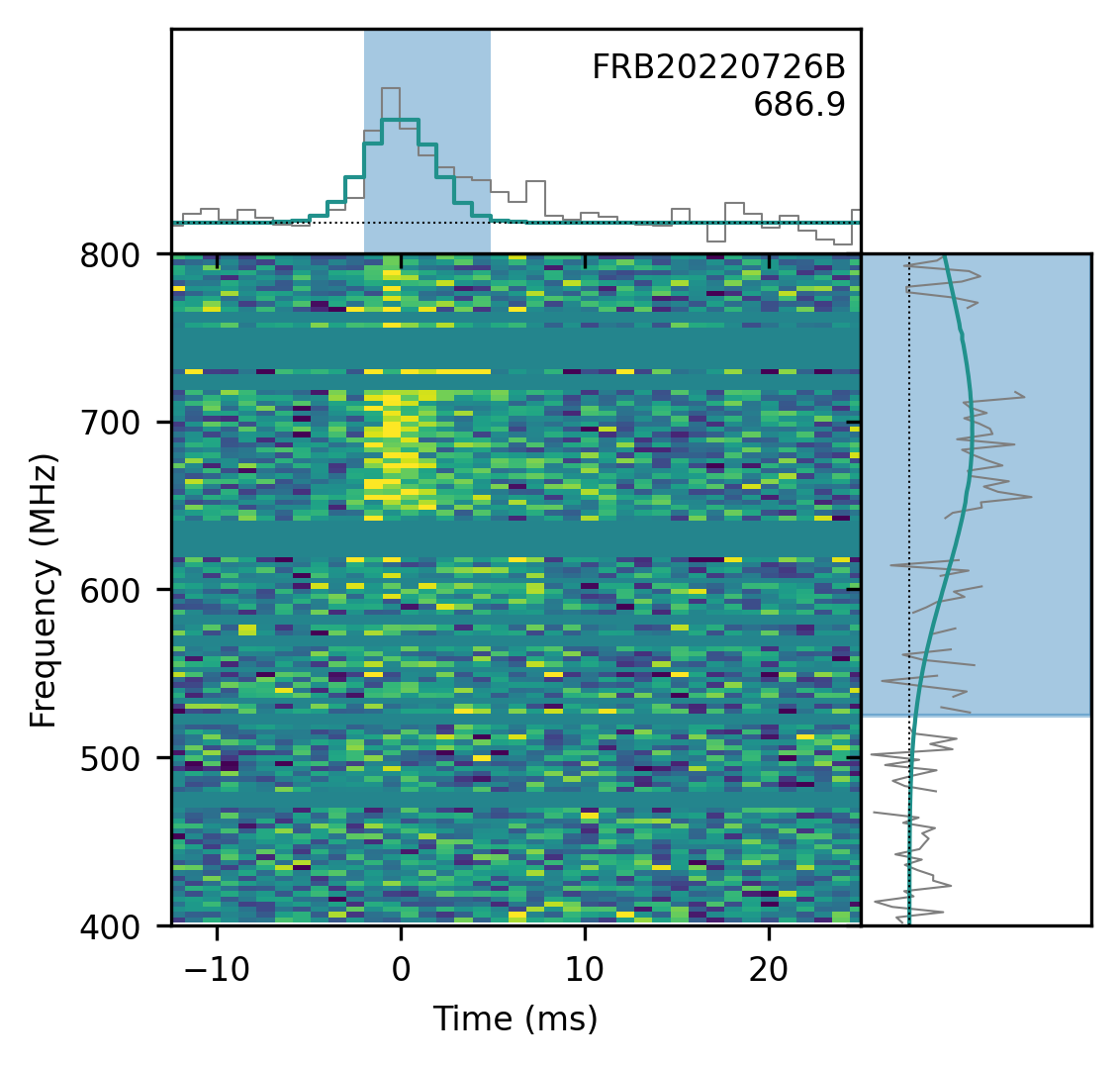

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
73.679± 0.197degrees
dec
69.884± 0.207degrees
gl
141.15degrees
gb
16.20degrees

Detection and dispersion

bonsai_snr
17.0
snr_fitb
22.6
bonsai_dm
686.2pc cm⁻³
dm_fitb
686.9378± 0.09120pc cm⁻³
dm_exc_ne2001
596.6pc cm⁻³
dm_exc_ymw16
574.1pc cm⁻³

Arrival time

mjd_400
59786.69346105375± 1.85 × 10⁻⁸MJD
mjd_inf
59786.6932550654± 3.30 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.001833± 0.0001924s
scat_time
0.000000s

Flux and spectrum

flux
0.86± 0.56Jy
fluence
3.94± 0.12Jy ms
peak_freq
693.8MHz
low_freq
524.9MHz
high_freq
800.2MHz
sp_idx
32.56± 6.52
sp_run
-29.59± 5.96

Exposure and fluence thresholds

exp_up
229.33± 124.84hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.3Jy ms
low_ft_95
—
up_ft_95
2.0Jy ms

Fit quality

chi_sq
1836568.117
dof
1837074
flag_frac
0.308
