FRB 20230709B

One-off burst

Event ID
302031999
Arrival, 400 MHz
2023-07-09 17:00:27.450 UTC
Right ascension
61.612°
Declination
57.815°

Loading

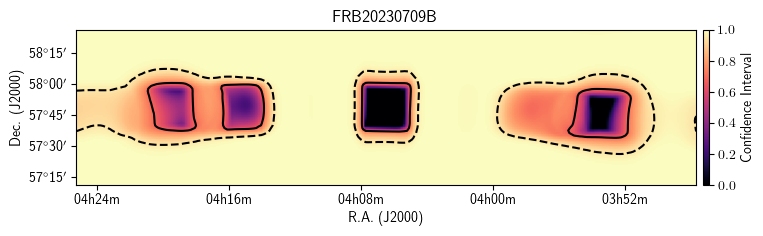

Localization

Loading

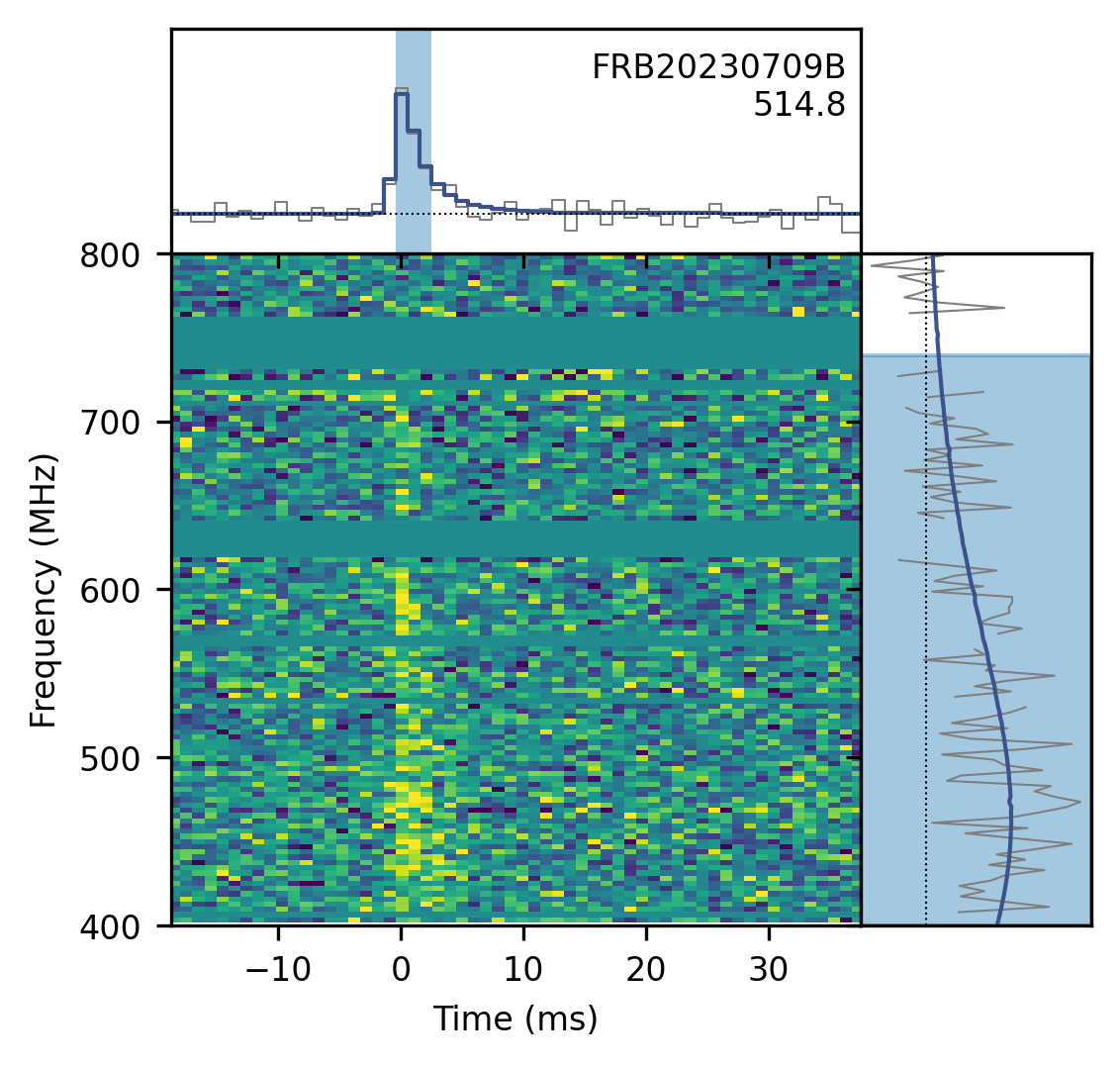

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
61.612± 0.197degrees
dec
57.815± 0.197degrees
gl
146.61degrees
gb
4.21degrees

Detection and dispersion

bonsai_snr
16.2
snr_fitb
20.7
bonsai_dm
514.0pc cm⁻³
dm_fitb
514.8076± 0.00954pc cm⁻³
dm_exc_ne2001
335.8pc cm⁻³
dm_exc_ymw16
234.9pc cm⁻³

Arrival time

mjd_400
60134.70865104378± 1.28 × 10⁻⁹MJD
mjd_inf
60134.708496671185± 3.13 × 10⁻⁹MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000254± 0.0000474s
scat_time
0.004508± 0.0004901s

Flux and spectrum

flux
1.15± 0.26Jy
fluence
3.77± 0.57Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
738.9MHz
sp_idx
-0.54± 1.03
sp_run
-5.24± 1.83

Exposure and fluence thresholds

exp_up
150.20± 80.06hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.7Jy ms
low_ft_95
—
up_ft_95
2.8Jy ms

Fit quality

chi_sq
1856739.384
dof
1857161
flag_frac
0.300
