Repeater
FRB20220912A
Event ID
301985880
Arrival, 400 MHz
2023-07-09 11:51:31.558 UTC
Right ascension
344.558°
Declination
48.796°

Loading

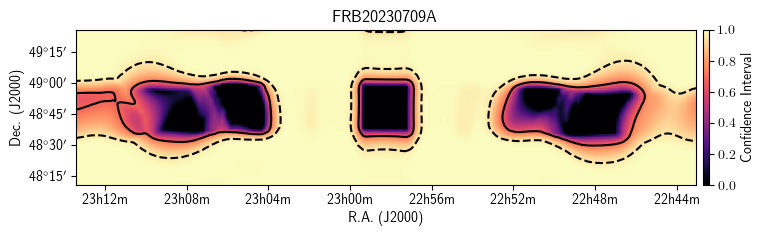

Localization

Loading

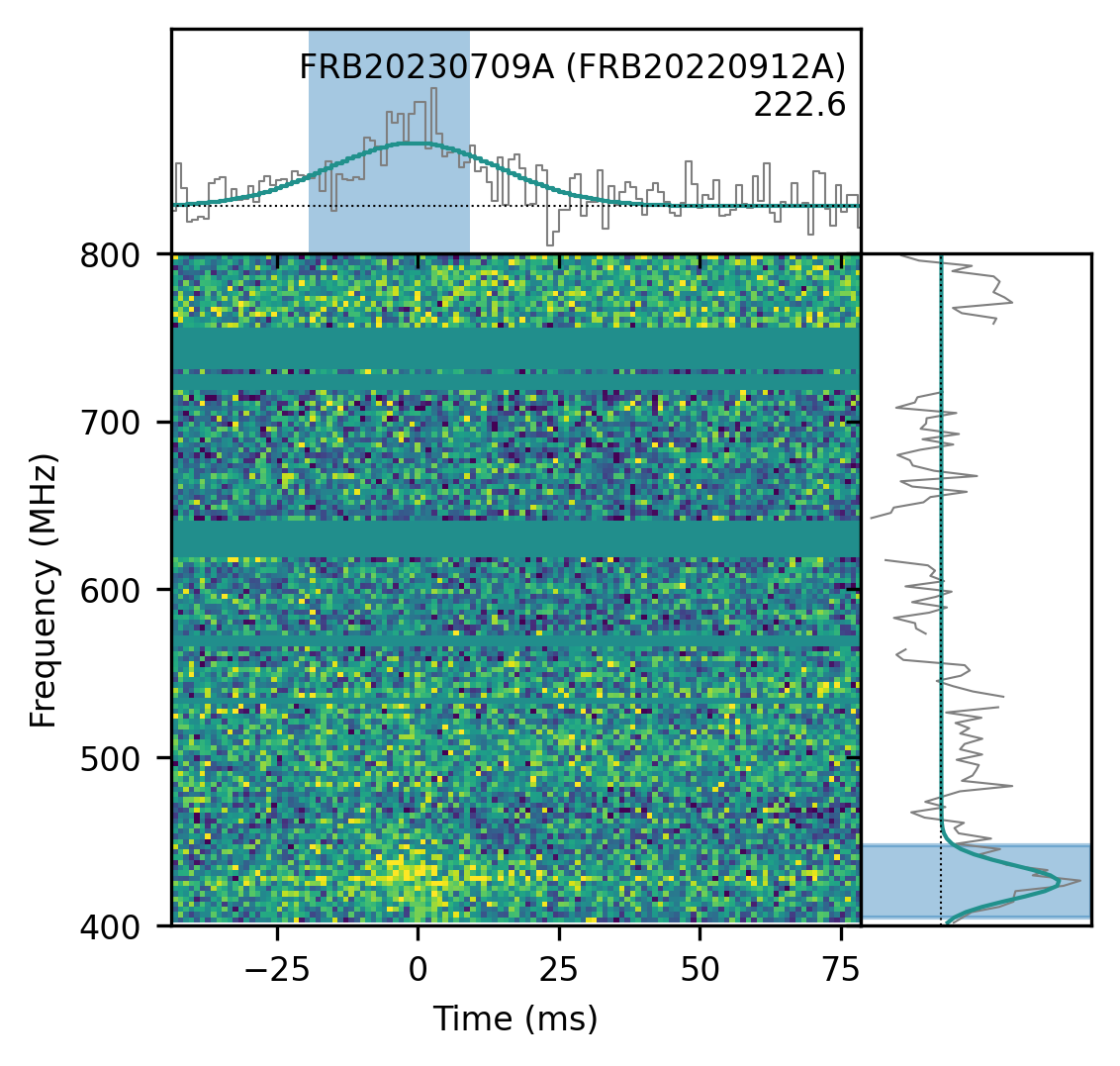

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
344.558± 0.223degrees
dec
48.796± 0.233degrees
gl
104.44degrees
gb
-9.97degrees

Detection and dispersion

bonsai_snr
10.3
snr_fitb
21.5
bonsai_dm
224.0pc cm⁻³
dm_fitb
222.5733± 1.09314pc cm⁻³
dm_exc_ne2001
88.4pc cm⁻³
dm_exc_ymw16
91.6pc cm⁻³

Arrival time

mjd_400
60134.49411525206± 4.11 × 10⁻⁸MJD
mjd_inf
60134.4940485102± 3.30 × 10⁻⁷MJD

Burst shape

bc_width
0.02851s
width_fitb
0.015090± 0.0020762s
scat_time
0.000000s

Flux and spectrum

flux
0.31± 0.17Jy
fluence
2.98± 0.90Jy ms
peak_freq
425.7MHz
low_freq
404.5MHz
high_freq
448.1MHz
sp_idx
109.07± 19.47
sp_run
-881.31± 156.06

Exposure and fluence thresholds

exp_up
113.98± 66.48hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1844069.953
dof
1844526
flag_frac
0.305
