CHIME/FRBPublic data

FRB 20230720A

One-off burst

Event ID
304166930
Arrival, 400 MHz
2023-07-20 12:29:54.879 UTC
Right ascension
4.745°
Declination
21.332°

Loading

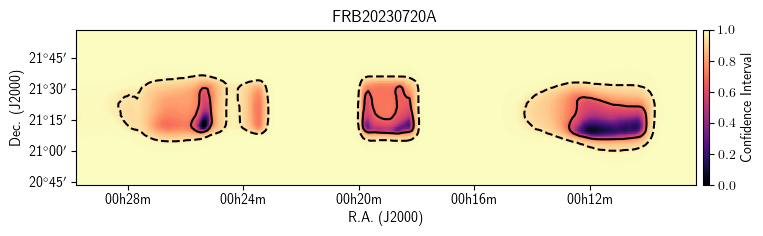

Localization

Loading

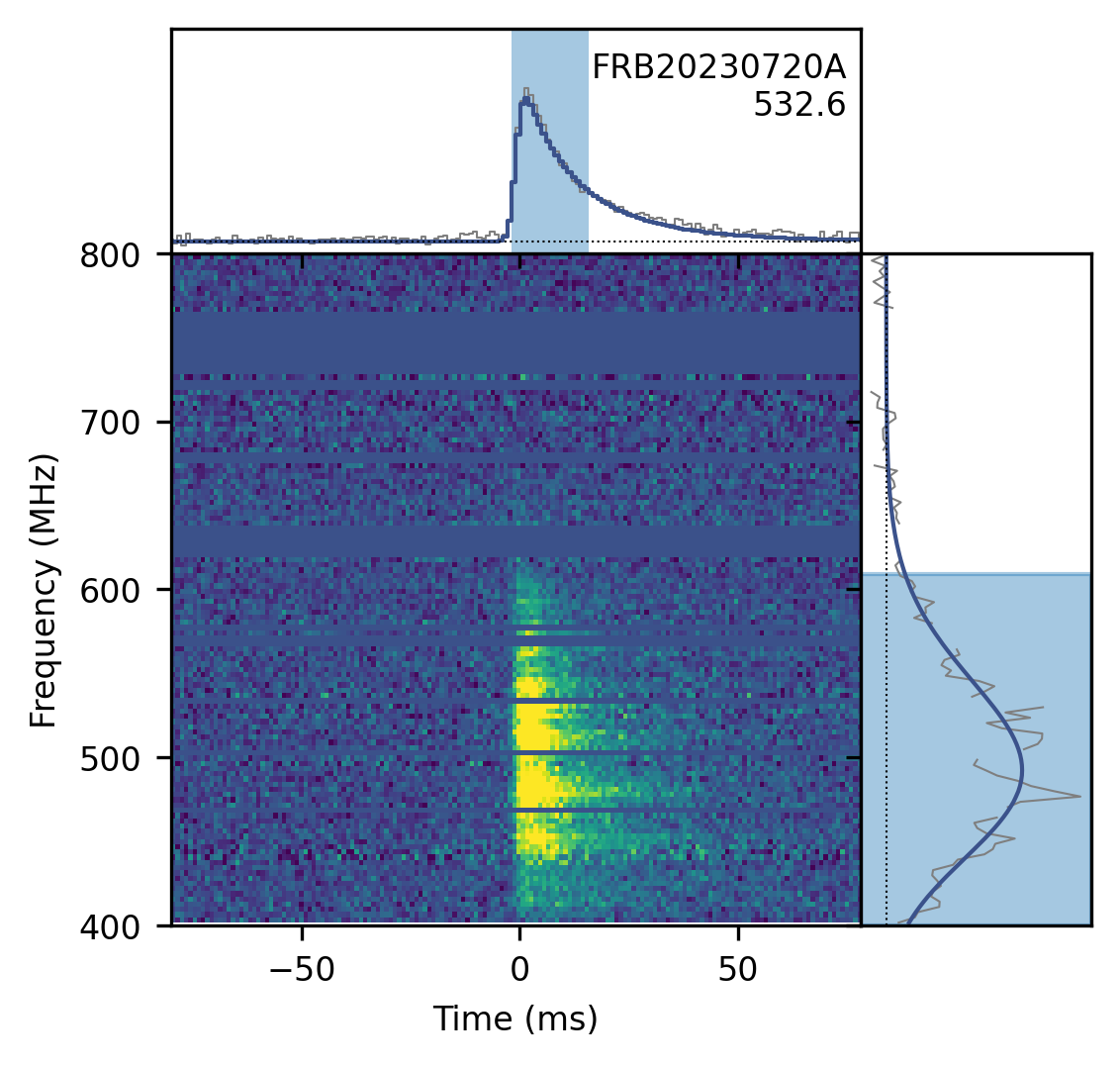

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
4.745± 0.206degrees
dec
21.332± 0.191degrees
gl
112.91degrees
gb
-40.91degrees

Detection and dispersion

bonsai_snr
46.7
snr_fitb
183.5
bonsai_dm
533.0pc cm⁻³
dm_fitb
532.5506± 0.01137pc cm⁻³
dm_exc_ne2001
493.1pc cm⁻³
dm_exc_ymw16
501.4pc cm⁻³

Arrival time

mjd_400
60145.52077405981± 1.29 × 10⁻⁹MJD
mjd_inf
60145.520614366746± 3.64 × 10⁻⁹MJD

Burst shape

bc_width
0.01769s
width_fitb
0.001171± 0.0000417s
scat_time
0.032482± 0.0004325s

Flux and spectrum

flux
3.75± 0.64Jy
fluence
55.12± 7.99Jy ms
peak_freq
480.0MHz
low_freq
400.2MHz
high_freq
609.3MHz
sp_idx
14.71± 0.28
sp_run
-40.47± 0.64

Exposure and fluence thresholds

exp_up
81.15± 48.23hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
6.7Jy ms
low_ft_95
—
up_ft_95
10.8Jy ms

Fit quality

chi_sq
1664741.351
dof
1698401
flag_frac
0.360
