FRB 20230720C

One-off burst

Event ID
304162211
Arrival, 400 MHz
2023-07-20 11:17:31.411 UTC
Right ascension
345.188°
Declination
73.270°

Loading

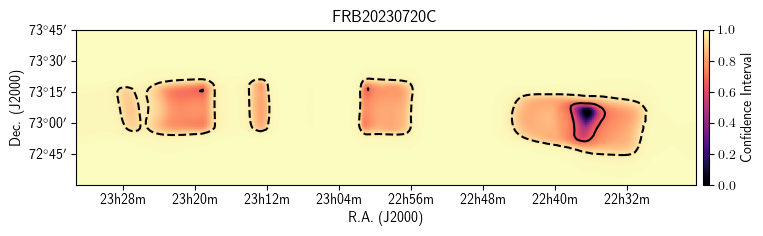

Localization

Loading

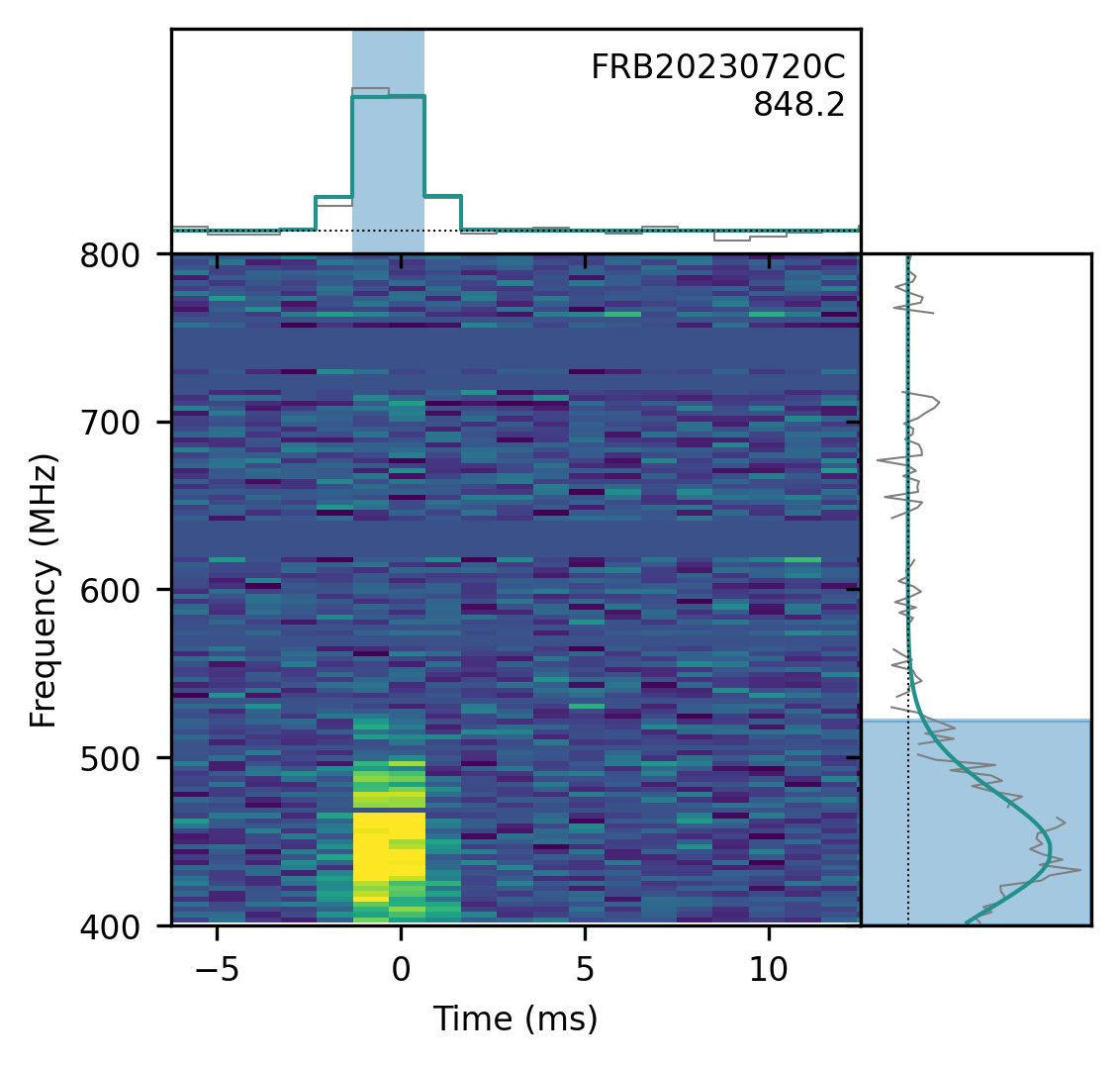

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
345.188± 0.002degrees
dec
73.270± 0.007degrees
gl
115.07degrees
gb
12.11degrees

Detection and dispersion

bonsai_snr
31.6
snr_fitb
52.1
bonsai_dm
847.2pc cm⁻³
dm_fitb
848.2452± 0.00278pc cm⁻³
dm_exc_ne2001
734.4pc cm⁻³
dm_exc_ymw16
691.5pc cm⁻³

Arrival time

mjd_400
60145.4705024462± 1.63 × 10⁻¹⁰MJD
mjd_inf
60145.47024808748± 8.47 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000424± 0.0000032s
scat_time
0.000000s

Flux and spectrum

flux
2.35± 1.78Jy
fluence
5.17± 4.16Jy ms
peak_freq
441.6MHz
low_freq
400.2MHz
high_freq
521.8MHz
sp_idx
16.28± 1.31
sp_run
-82.64± 5.38

Exposure and fluence thresholds

exp_up
287.49± 132.41hour
exp_low
148.84± 104.29hour
low_ft_68
8.0Jy ms
up_ft_68
1.1Jy ms
low_ft_95
16.6Jy ms
up_ft_95
2.4Jy ms

Fit quality

chi_sq
1782041.957
dof
1784748
flag_frac
0.328
