CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
309083354
Arrival, 400 MHz
2023-08-08 10:03:39.003 UTC
Right ascension
347.076°
Declination
48.796°

Loading

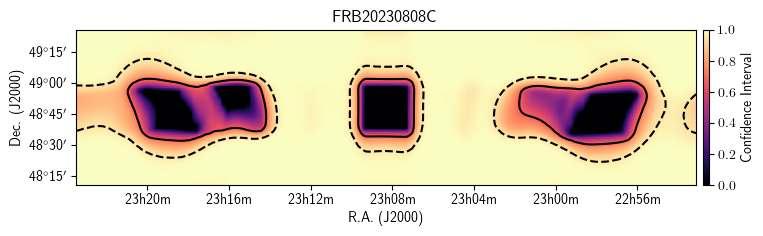

Localization

Loading

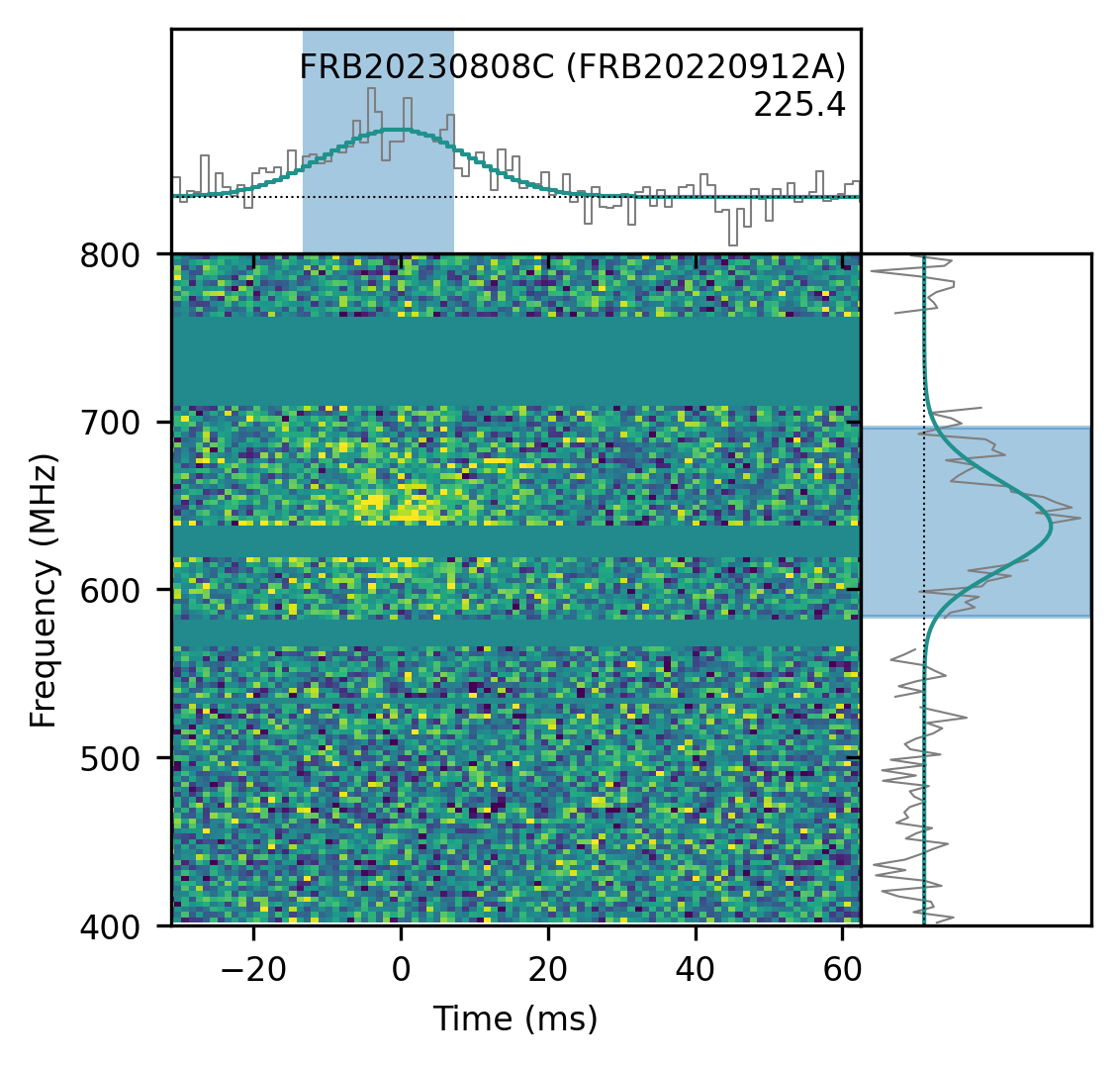

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.076± 0.225degrees
dec
48.796± 0.234degrees
gl
105.98degrees
gb
-10.65degrees

Detection and dispersion

bonsai_snr
10.7
snr_fitb
22.1
bonsai_dm
228.1pc cm⁻³
dm_fitb
225.4215± 1.05381pc cm⁻³
dm_exc_ne2001
98.7pc cm⁻³
dm_exc_ymw16
101.6pc cm⁻³

Arrival time

mjd_400
60164.419201425444± 1.94 × 10⁻⁷MJD
mjd_inf
60164.41913382951± 3.71 × 10⁻⁷MJD

Burst shape

bc_width
0.02064s
width_fitb
0.009737± 0.0006920s
scat_time
0.000000s

Flux and spectrum

flux
0.25± 0.16Jy
fluence
3.95± 1.15Jy ms
peak_freq
637.4MHz
low_freq
583.8MHz
high_freq
696.1MHz
sp_idx
276.74± 39.01
sp_run
-297.24± 42.22

Exposure and fluence thresholds

exp_up
115.14± 65.94hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1753322.395
dof
1753806
flag_frac
0.339
